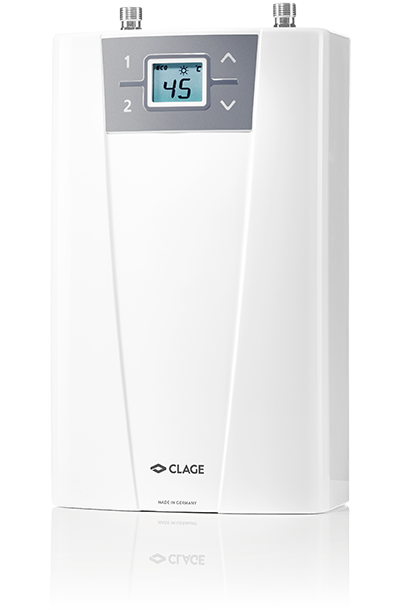

E-compact instant water heater
CEX 7-U
![E-compact instant water heater CEX 7-U](/images/Products/e-compact-instant-water-heaters/CLAGE-e-compact-instant-water-heaters-CEX7-U+140f6969d5213fd0ece03148e62e461e_head.png)
Energy efficiency class A
(Scale: A+ to F)
- CEX 7-U: 6.9 kW, 400 V
This is where the CEX 7-U is used.
-
Kitchen sink
-
Washstand
-
Double washbasin
Precise hot water
convenience .
With its electronic control, the
- Electronically controlled instant water heater in compact design for installation under the sink
- Push-button operation panel with LED display for precise temperature setting between 20 °C and 60 °C
- In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
- Two programming buttons for individual pre-set temperatures, optional temperature limitation as well as function indicators
- Adding cold water is no longer necessary
- Easy installation under the kitchen sink facilitated by small dimensions and external ⅜" water connectors for closed-outlet or open-outlet installation
- With power cable for permanent electrical connection
- Remote control module available as an accessory: FXS 3 (C)
- Can also be controlled by tablet or smartphone (from iOS 9 / Android-OS 4.4) (this requires an FXE3 (C) radio adapter and the "Smart Control" app)
- Dimensions (height × width × depth): 29.4 × 17.7 × 10.4 cm
Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||||
|
|
1) Temperature increase e.g. from 12 °C to 45 °C
2) Limited flow amount for optimal temperature increase
3) Suitable for reheating
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
![]() Operating and installation instructions CX3-CEX-CEX7-CFX-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sv-el.pdf 11.04.2022 > download |
Operating and installation instructions | CX3-CEX-CEX7-CFX-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sv-el.pdf | 11.04.2022 |
6,9 MB > download |
![]() Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 > download |
Safety instructions | Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf | 03.11.2023 |
371 kB > download |
![]() Energy label CEX7-U-Energielabel.pdf 28.02.2018 > download |
Energy label | CEX7-U-Energielabel.pdf | 28.02.2018 |
219 kB > download |
![]() CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2024-08.pdf 15.08.2024 > download |
CE Conformity | CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2024-08.pdf | 15.08.2024 |
752 kB > download |
![]() Product photo CEX-U-CX3-45Grad-Produktfoto-rechts.jpg 23.12.2021 > download |
Product photo | CEX-U-CX3-45Grad-Produktfoto-rechts.jpg | 23.12.2021 |
414 kB > download |
![]() Product photo CEX-U-CX3-45Grad-Produktfoto-links.jpg 23.12.2021 > download |
Product photo | CEX-U-CX3-45Grad-Produktfoto-links.jpg | 23.12.2021 |
74 kB > download |
![]() Product photo CEX-U-CX3-45Grad-Produktfoto-frontal.jpg 23.12.2021 > download |
Product photo | CEX-U-CX3-45Grad-Produktfoto-frontal.jpg | 23.12.2021 |
417 kB > download |
![]() Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 10.05.2023 |
6,6 MB > download |
![]() GAEB GAEB.zip 03.06.2024 > download |
GAEB | GAEB.zip | 03.06.2024 |
725 kB > download |
Accessories
>
![FVS](/assets/gfx/accessories/aab3238922bcc25a6f606eb525ffdc56.png)
FVS (included)
Flexible connecting hose ⅜ inch cap nut × ⅜ inch cap nut, length 50 cm
FVS: Part no. 89620
![T-piece](/assets/gfx/accessories/9bf31c7ff062936a96d3c8bd1f8f2ff3.png)
T-piece (included)
Special T-connector ⅜ inch cap nut × ⅜ inch angle valve 10 mm
T-piece: Part no. 89610
![CSP 6](/assets/gfx/accessories/70efdf2ec9b086079795c442636b55fb.png)
CSP 6 (optional)
Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).
CSP 6: Part no. 0010-00461
- Product information sheetAerators-PI-en.pdf (293 kB)
![CSP 6a](/assets/gfx/accessories/a5771bce93e200c36f7cd9dfd0e5deaa.png)
CSP 6a (optional)
Aerator with chrome tap adapter M 24a (suitable for taps with internal thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6a (< 3,5 l/min).
CSP 6a: Part no. 0010-0047
- Product information sheetAerators-PI-en.pdf (293 kB)
![CSP 6i](/assets/gfx/accessories/d67d8ab4f4c10bf22aa353e27879133c.png)
CSP 6i (optional)
Aerator with chrome tap adapter M 22i (suitable for taps with external thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6i (< 3,5 l/min).
CSP 6i: Part no. 0010-0046
- Product information sheetAerators-PI-en.pdf (293 kB)
![FXS 3 (C) Radio remote control set](/assets/gfx/accessories/1d7f7abc18fcb43975065399b0d1e48e.png)
FXS 3 (C) Radio remote control set (optional)
– ONLY FOR DEVICES MANUFACTURED AS OF 2022 – FX 3 radio remote control plus Bluetooth radio adapter FXE 3 (C) in a set for installation in the instantaneous water heater. In addition to operation on the appliance, the radio remote control enables convenient temperature setting of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure Bluetooth radio transmission, infinitely variable temperature selection via two buttons, two fixed value buttons and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm.
FXS 3 (C) Radio remote control set: Part no. 3200-34027
- Operating and installation instructionsFXS3-GMA-de-en.pdf (1,84 MB)
![FXE 3 (C) extension](/assets/gfx/accessories/b3e3e393c77e35a4a3f3cbd1e429b5dc.png)
FXE 3 (C) extension (optional)
– ONLY FOR DEVICES MANUFACTURED AS OF 2022 – Bluetooth radio adapter for installation in the instantaneous water heater to connect the electric instantaneous water heater with the smartphone / tablet via app "Smart Control" or a CLAGE remote control. This extension is required if the units are not yet equipped with an FX 3 radio remote control.
FXE 3 (C) extension: Part no. 3200-34026
- Operating and installation instructionsFXS3-GMA-de-en.pdf (1,84 MB)
![FXS Next (C)](/assets/gfx/accessories/b73ce398c39f506af761d2277d853a92.png)
FXS Next (C) (optional)
Bluetooth radio remote control for electronic instantaneous water heaters, temperature selection and settings via sensor keys in an intuitive menu navigation, with e-paper display, Bluetooth connection for secure data transmission between radio remote control and instantaneous water heater, FXE 3 radio adapter for installation in the instantaneous water heater (C series) included in the scope of delivery of FXS Next, batteries and magnetic wall bracket included in the scope of delivery.
FXS Next (C): Part no. 3200-34024
- Operating and installation instructionsFX-Next-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-sv-el.pdf (2,15 MB)
![LAB](/assets/gfx/accessories/17e62166fc8586dfa4d1bc0e1742c08b.png)
LAB (optional)
Load shedding module (electrical installation kit) with pre-installed cables, contactor and load shedding relay, for joint connection of an instant water heater with an output ≤ 13,5 kW and an electromechanical cooker at a cooker terminal outlet box, if no separate outlet is available for the instant water heater. IP 55. Dimensions (H×W×D): 18×13×8cm
LAB: Part no. 82260
Interesting features.
-
Smart Control-ready
-
Remote control (optional)
-
Solar-compatible, suitable for reheating
