E-mini instant water heater with tap
M / SMB

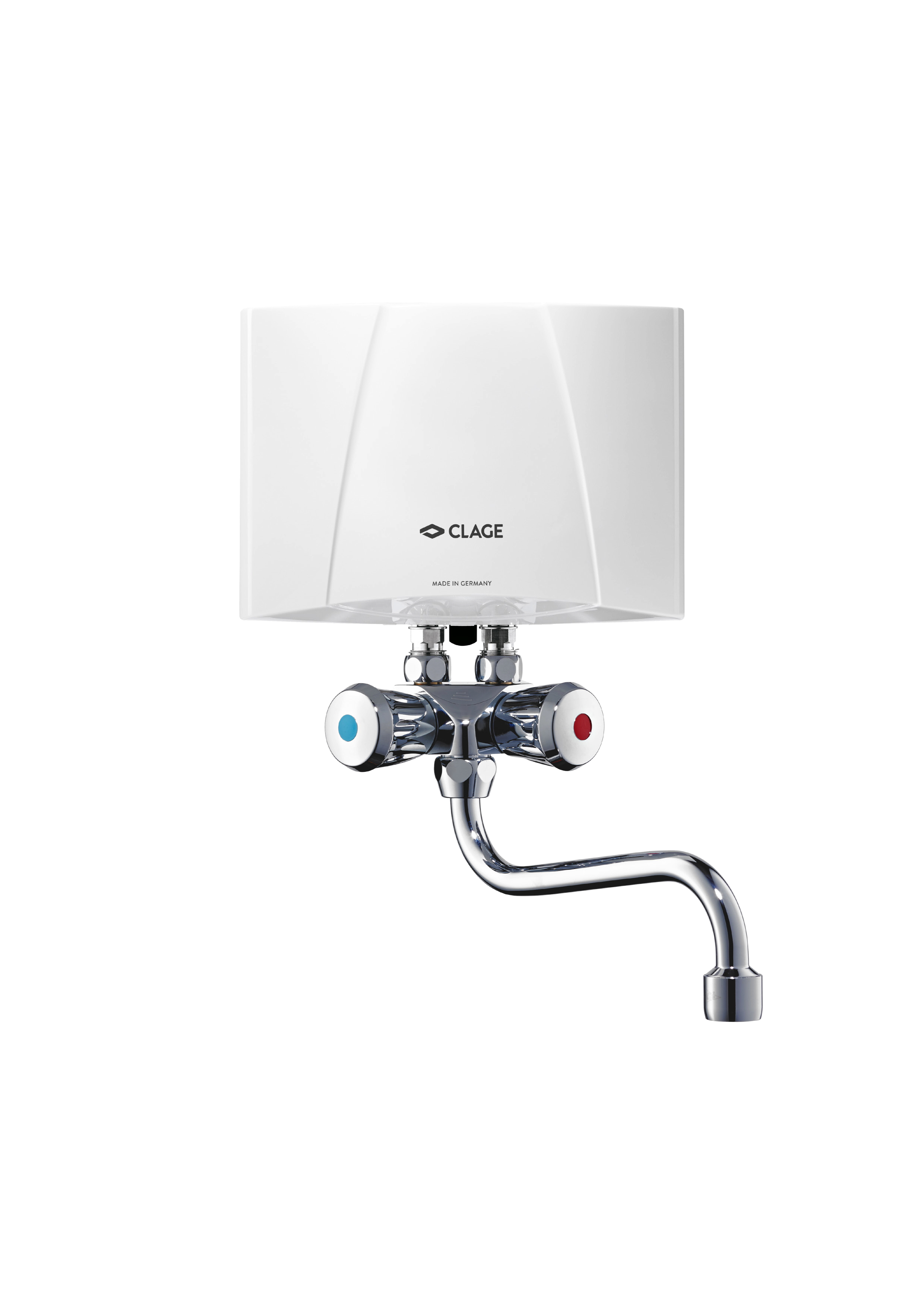

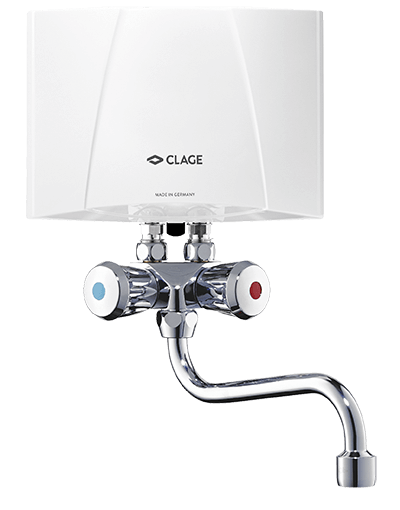

E-mini instant water heater with tap M / SMB

Energy efficiency class A

(scale: A+ to F)

  • M 3 / SMB: 3.5 kW, 230 V
    with plug
  • M 3 / SMB (E): 3.5 kW, 230 V
  • M 4 / SMB: 4.4 kW, 230 V
  • M 7 / SMB: 6.5 kW, 400 V

This is where the M / SMB is used.

  1. Disposal sink

    Disposal sink

  2. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  3. Sanitary facilities in commercial buildings

    Sanitary facilities in commercial buildings

  4. Staff kitchen

    Staff kitchen

Save electricity even above the sink.

The pressureless small instantaneous electric water heater is supplied as a complete set with matching special mixer tap. Installed above the sink, the small unit saves precious standby power.

  • Hydraulically controlled small instantaneous water heater with pressureless special mixer tap and 16 cm long swivel spout for over-sink installation
  • The heating power switches on automatically as soon as water flows through the device
  • New flow connector for optimum water jet with economical water consumption
  • Saves up to 85 % energy compared to conventional small storage tanks
  • Effective and maintenance-friendly bare-wire heating system IES® with replaceable heating cartridge
  • Easy installation with special mixer tap and mains cable (M3 / SMB with plug)
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.























E-mini instant water heater with tap M 3 / SMB E-mini instant water heater with tap M 3 / SMB (E) E-mini instant water heater with tap M 4 / SMB E-mini instant water heater with tap M 7 / SMB
Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen
M 3 / SMB M 3 / SMB (E) M 4 / SMB M 7 / SMB
Specification
Part number
Nominal power rating at 230 V [kW]
Nominal power rating at 400 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections device (thread connections)
Water connections tap (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 230 V AC] with plug: Schuko Typ-F (CEE 7/7)
Supply voltage [1~ / N / PE 230 V AC] permanent connection 3)
Supply voltage [1~ / N / PE 230 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current at 230 V [A]
Nominal current at 400 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
Pour la France
1500-17103 1500-171032 1500-17104 1500-17107
3.5 3.5 4.4
6.5
0 (0) 0 (0) 0 (0) 0 (0)
G ⅜" G ⅜" G ⅜" G ⅜"
G ½" G ½" G ½" G ½"
2.0 2.0 2.5 3.7
1.3 1.3 1.8 2.4
2.0 2.0 2.5 3.7




15 15 19
16
1.5 1.5 2.5 2.5
20 20 20 20
IP 25 IP 25 IP 25 IP 25
1100 1100 1100 1100
1.5 1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

3) Mandatory in France. Also available with plug (Schuko Typ-F (CEE 7/7)).
