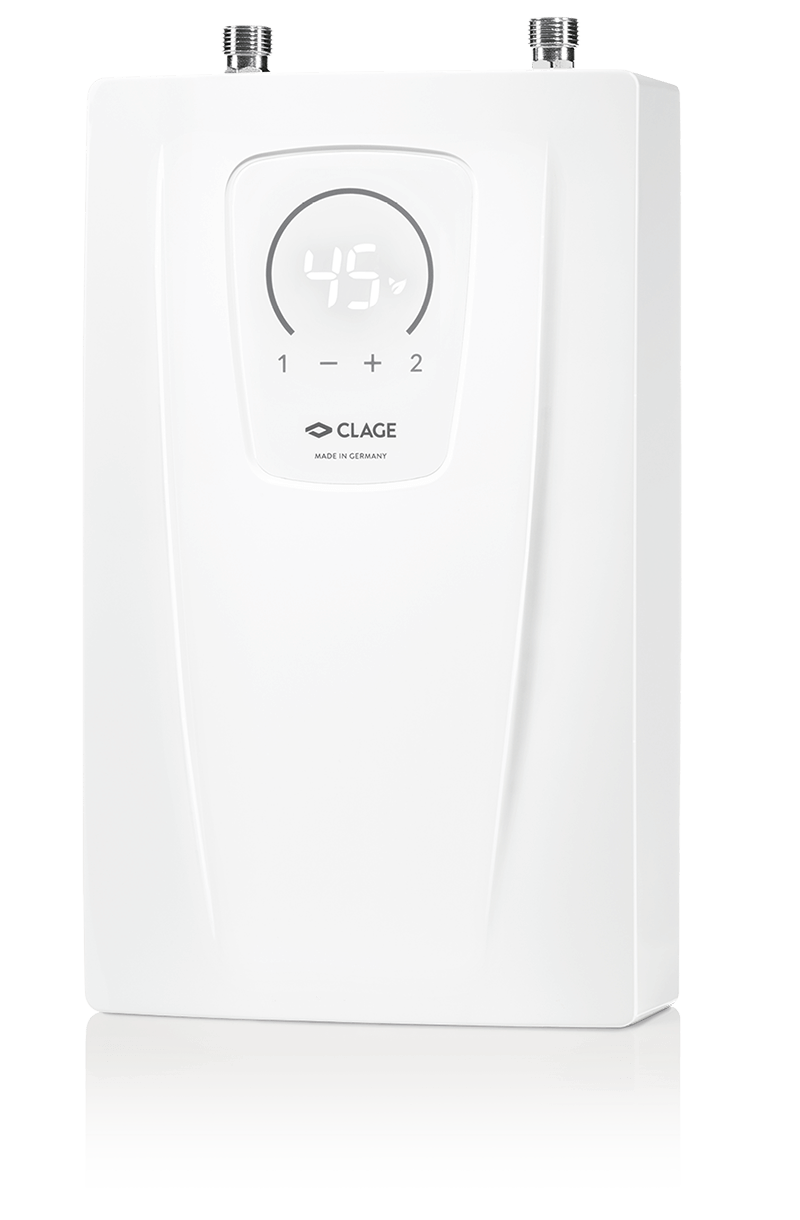

E-compact instant water heater
CEX 9-U
Energy efficiency class A
(Scale: A+ to F)
- CEX 9-U: 6.6/8.8 kW, 220–240 V
This is where the CEX 9-U is used.
-
Kitchen sink
-
Washstand
-
Double washbasin
Innovative heating
technology .
Compact instantaneous water heater for washbasins and kitchen sinks. The nominal power ranges from 6.6 to 8.8 kW at 220 to 240 V. This means that the unit has sufficient output to heat water from 35 °C to 55 °C at around 5 l/min. Since the incoming cold water in many southern countries is warmer than in Central and Northern Europe, the relatively low device output is nevertheless sufficient for a pleasant showering experience or similar applications. During installation, the instantaneous water heater can be limited to 6.6 kW. Thus, the device is versatile and sets new standards in terms of fast and efficient water heating with IES® heating technology.
- Electronically controlled instant water heater (undersink model) in compact design
- The heating output is electronically controlled. This provides an ideal hot water temperature without the need to add cold water at the tap.
- Push-button operation panel with LED display for precise temperature setting between 20 °C and 55 °C
- In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
- Two programming buttons for individual pre-set temperatures limits as well as function indicators
- Easy installation under the kitchen sink facilitated by small dimensions and external ½-inch water connectors
- Connection set (T-piece and flexible pressure hose) for an angle valve is included in delivery
- With power cable for permanent electrical connection
- Precise temperatures due to TWIN TEMPERATURE control TTC® up to the capacity of the appliance
- The efficient bare wire heating system IES® reduces lime scale deposits and provides an extended service life
- With the Multiple Power System MPS®, the maximum power rating is set at the time of installation: 6.6 or 8.8 kW
- Can also be controlled by tablet or smartphone (from iOS 9 / Android-OS 4.4) (this requires an FXE3 (C) radio adapter and the "Smart Control" app)
- Solar system compatible (supply temperature ≤ 60 °C)
- Dimensions (height × width × depth): 29.4 × 17.7 × 10.4 cm
