Hot water storage heater
S

Energy efficiency class C

(scale: A+ to F)

S 50: 2.0 kW, 230 V
with plug
S 80: 2.0 kW, 230 V
with plug
S 100: 2.0 kW, 230 V
with plug

Technical data
Downloads
Accessories

This is where the S is used.

Appartements
Public buildings

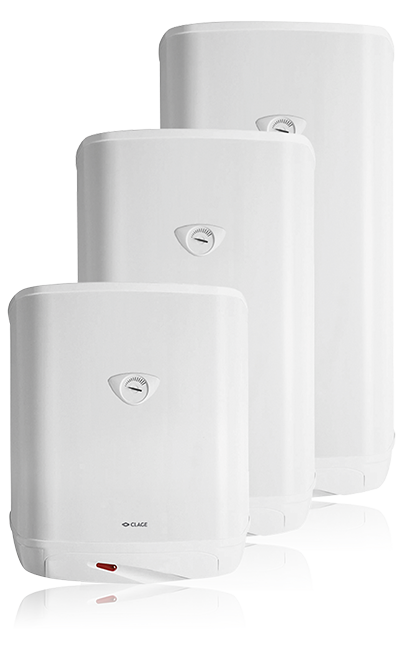

Wall-mounted storage heaters 50 to 100 litres.

Whenever larger water amounts are required, these wall-mounted storage heaters provide the necessary capacities. The special enamel coating and a magnesium anode provide corrosion protection for the internal tank.

Pressure-resistant wall-mounted cylinder with a capacity of 50, 80 or 100 liters for supplying several tapping points
Special enamelled steel inner tank
Thermostat with overheating protection
Infinitely variable temperature controller up to 70 °C with temperature display
Corrosion protection thanks to special enamelling and magnesium protective anode
PU hard foam insulation
Thermometer
Jet water protection IP 25D
Connecting cable with Schuko plug
Dimensions S 50 (height × width × depth): 61.3 × 49.3 × 49.9 cm
Dimensions S 80 (height × width × depth): 84.1 × 49.3 × 49.9 cm
Dimensions S 100 (height × width × depth): 99.3 × 49.3 × 49.9 cm

Technical data

Data. Values. Facts.



S 50	S 80	S 100

Part number

Nominal power rating at 230 V [kW]

Content [litres]

Type: unvented

Maximum operating pressure [MPa (bar)]

Water connections (thread connections)

Temperature range [°C]

Mixed water amount 40 °C ¹⁾ [litres], approx.

Heating time Δt = 45 K ²⁾ [min]

Standby power consumption at 65 °C [kWh / 24h]

Supply voltage [1~ / N / PE 220–240 V AC] with plug: Schuko Typ-F (CEE 7/7)

Nominal current at 230 V [A]

Function indicator

Hot water capacity indicator

Internal tank: specially enamelled steel

Single-circuit operation

Protection class

Weight filled with water [kg], approx.

4100-43850	4100-43880	4100-43900
2.0	2.0	2.0
50	80	100

0.6 (6)	0.6 (6)	0.6 (6)
G ½"	G ½"	G ½"
≤ 70	≤ 70	≤ 70
100	160	200
90	140	180
0.80	0.98	1.18

9	9	9




IP 25D	IP 25D	IP 25D
70	105	129

1) With an inlet temperature of 15 °C and a content temperature of 65 °C

2) Temperature increase e.g. from 15 °C to 60 °C

Downloads

	Media type	Title	Date	Size
Product information sheet S50-S80-S100-PI-en.pdf 18.10.2018 > download	Product information sheet	S50-S80-S100-PI-en.pdf	18.10.2018	520 kB > download
Operating and installation instructions S50-S80-S100-GMA-de-en.pdf 14.02.2017 > download	Operating and installation instructions	S50-S80-S100-GMA-de-en.pdf	14.02.2017	1,9 MB > download
Energy label S50-Energielabel.pdf 14.02.2017 > download	Energy label	S50-Energielabel.pdf	14.02.2017	231 kB > download
Energy label S80-Energielabel.pdf 14.02.2017 > download	Energy label	S80-Energielabel.pdf	14.02.2017	230 kB > download
Energy label S100-Energielabel.pdf 14.02.2017 > download	Energy label	S100-Energielabel.pdf	14.02.2017	230 kB > download
ErP product sheet S50_S80_S100.pdf 14.02.2017 > download	ErP product sheet	S50_S80_S100.pdf	14.02.2017	96 kB > download
CE Conformity S30-S50-S80-S100-Konformitaetserklaerung-CE-Conformity-en-2015-10.pdf 17.07.2018 > download	CE Conformity	S30-S50-S80-S100-Konformitaetserklaerung-CE-Conformity-en-2015-10.pdf	17.07.2018	14 kB > download

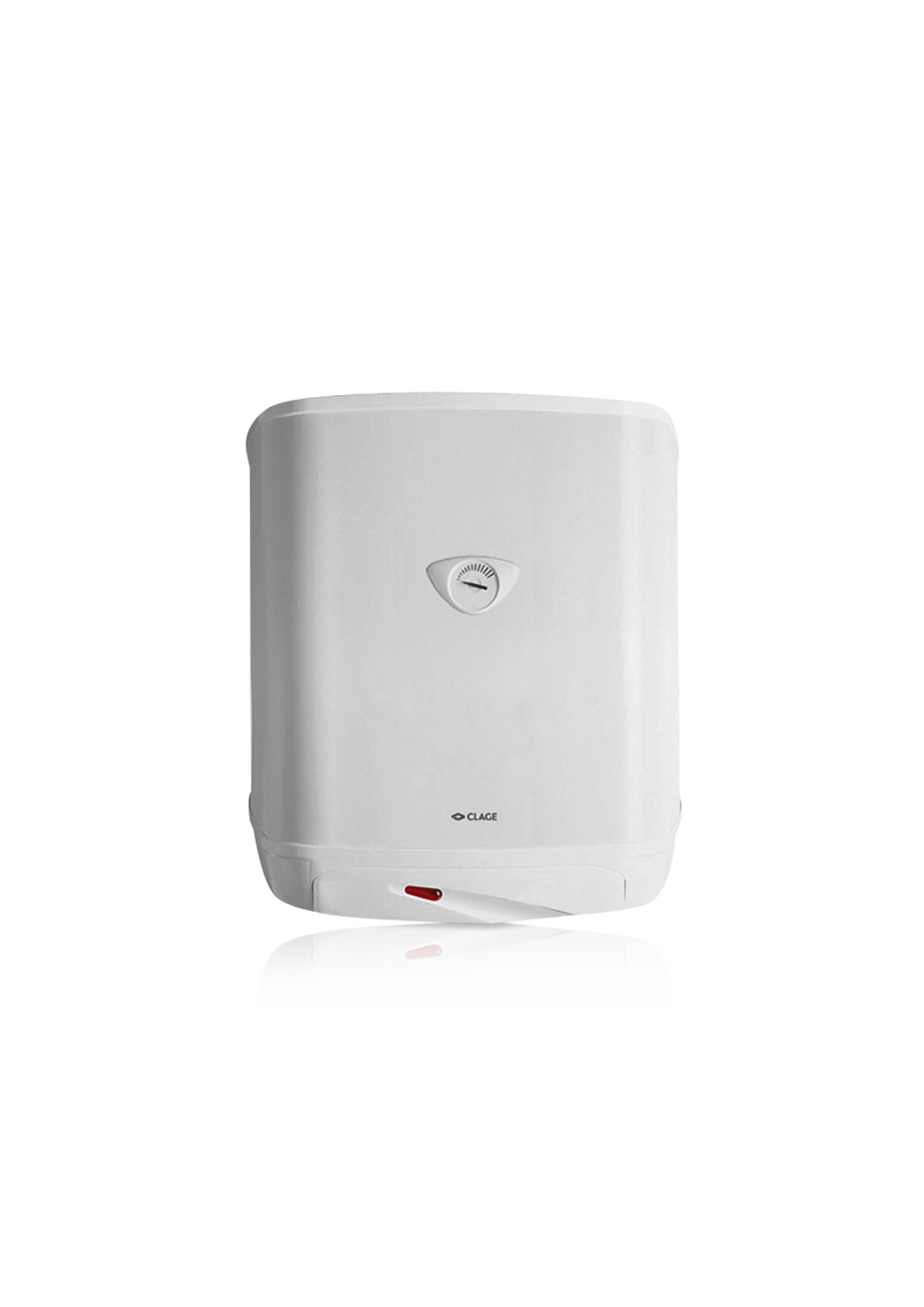

Product photo S50-frontal-HighRes.jpg 29.06.2017 > download	Product photo	S50-frontal-HighRes.jpg	29.06.2017	575 kB > download

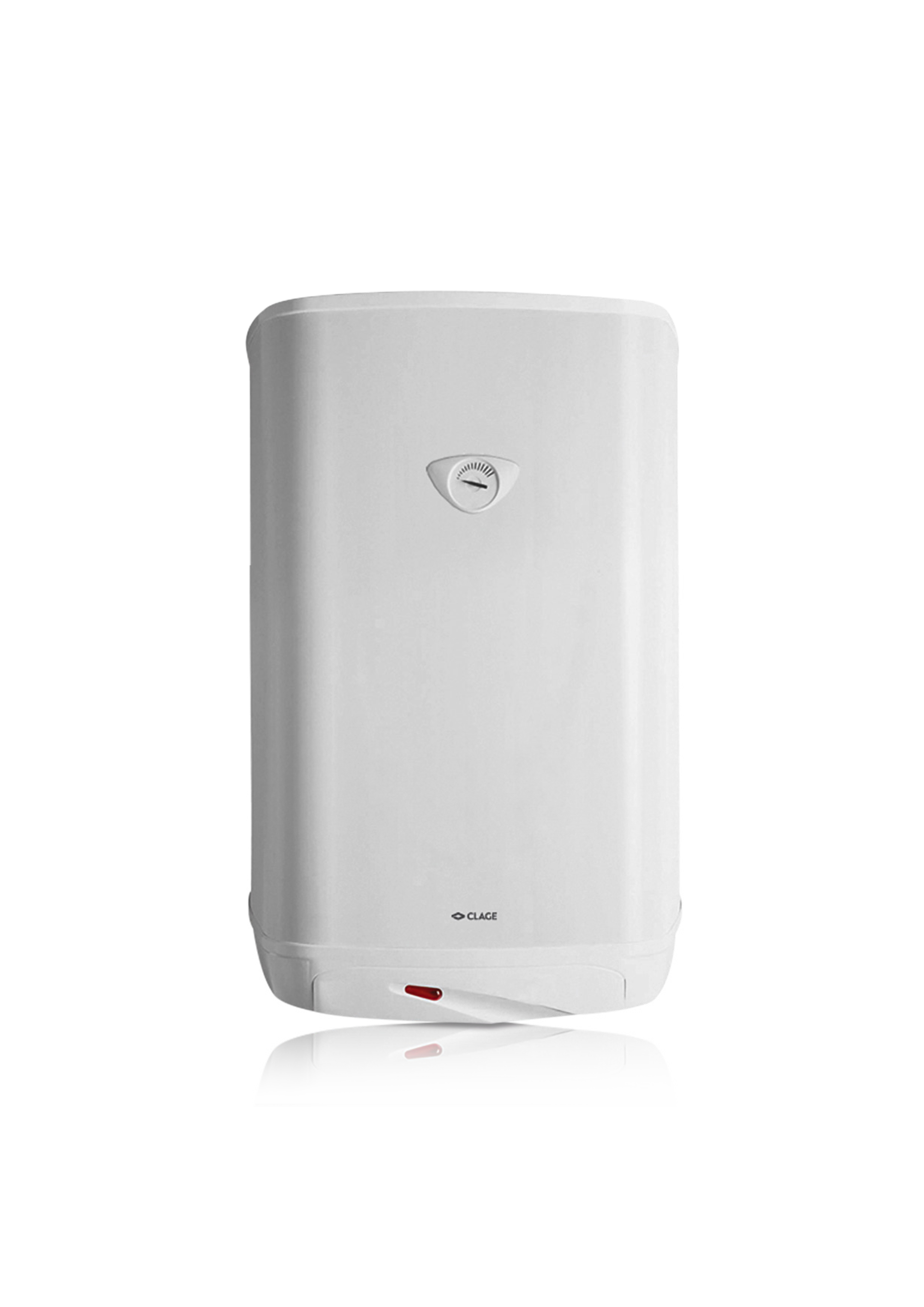

Product photo S80-frontal-HighRes.jpg 29.06.2017 > download	Product photo	S80-frontal-HighRes.jpg	29.06.2017	701 kB > download

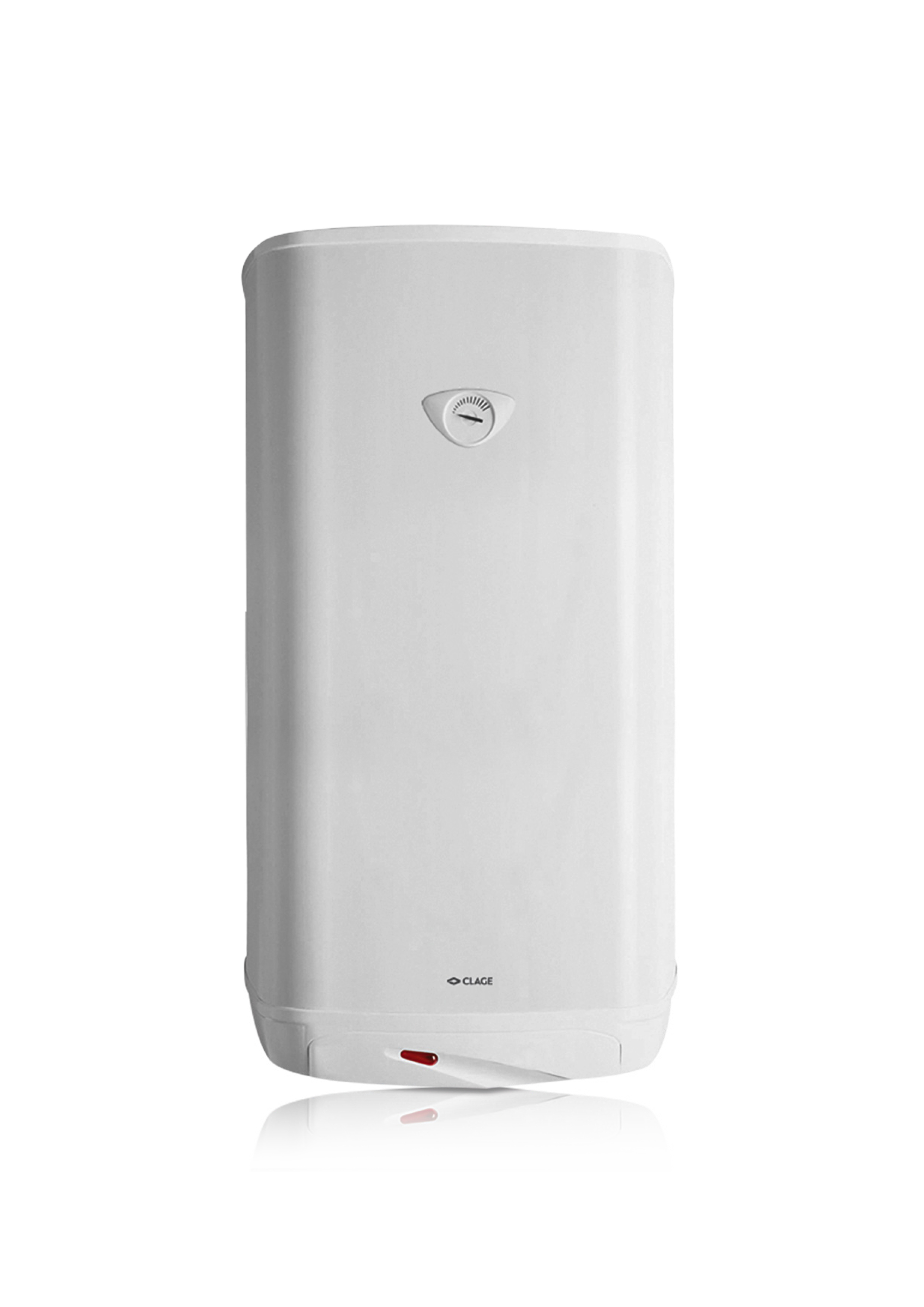

Product photo S100-frontal-HighRes.jpg 29.06.2017 > download	Product photo	S100-frontal-HighRes.jpg	29.06.2017	813 kB > download
