E-module instantaneous water heater
ISX 13
Energy efficiency class A
(Scale: A+ to F)
- ISX 13: 11/13.5 kW, 400 V

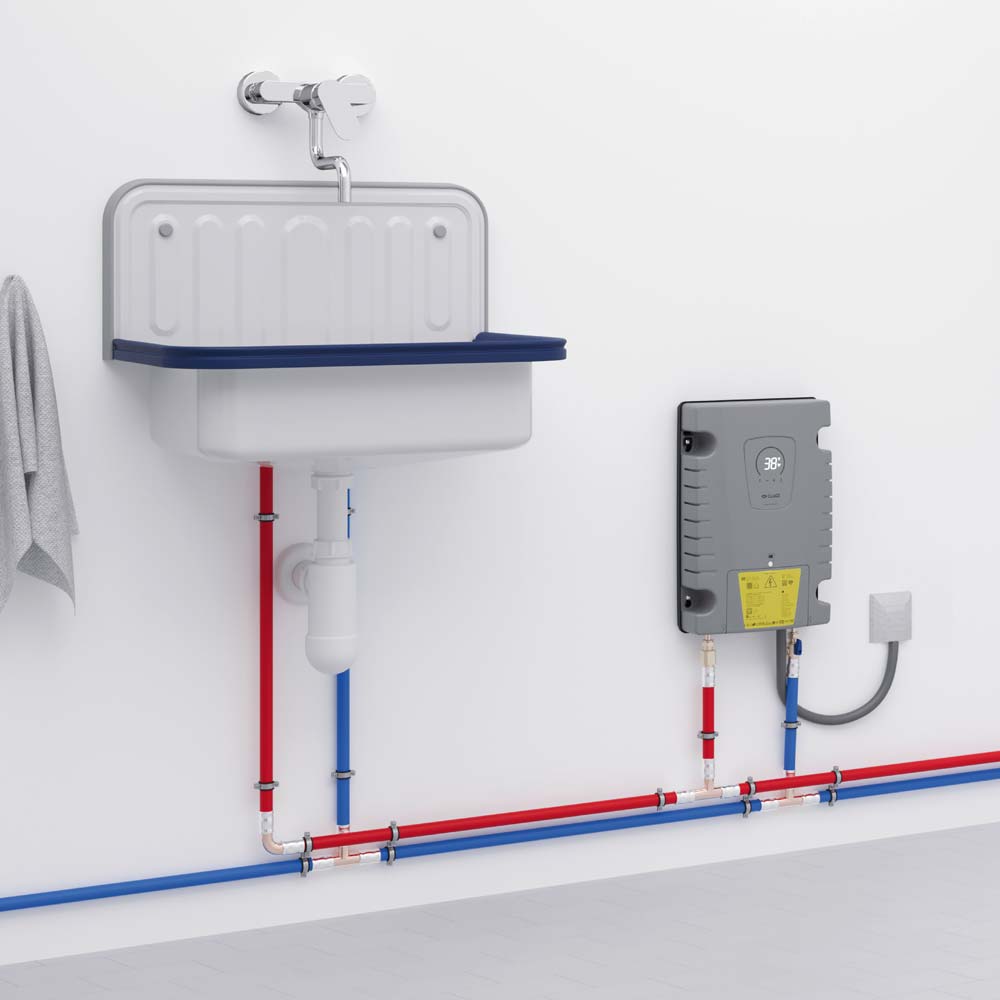

This is where the ISX 13 is used.
-
Handwashbasin
-
Shower
-
Kitchen sink

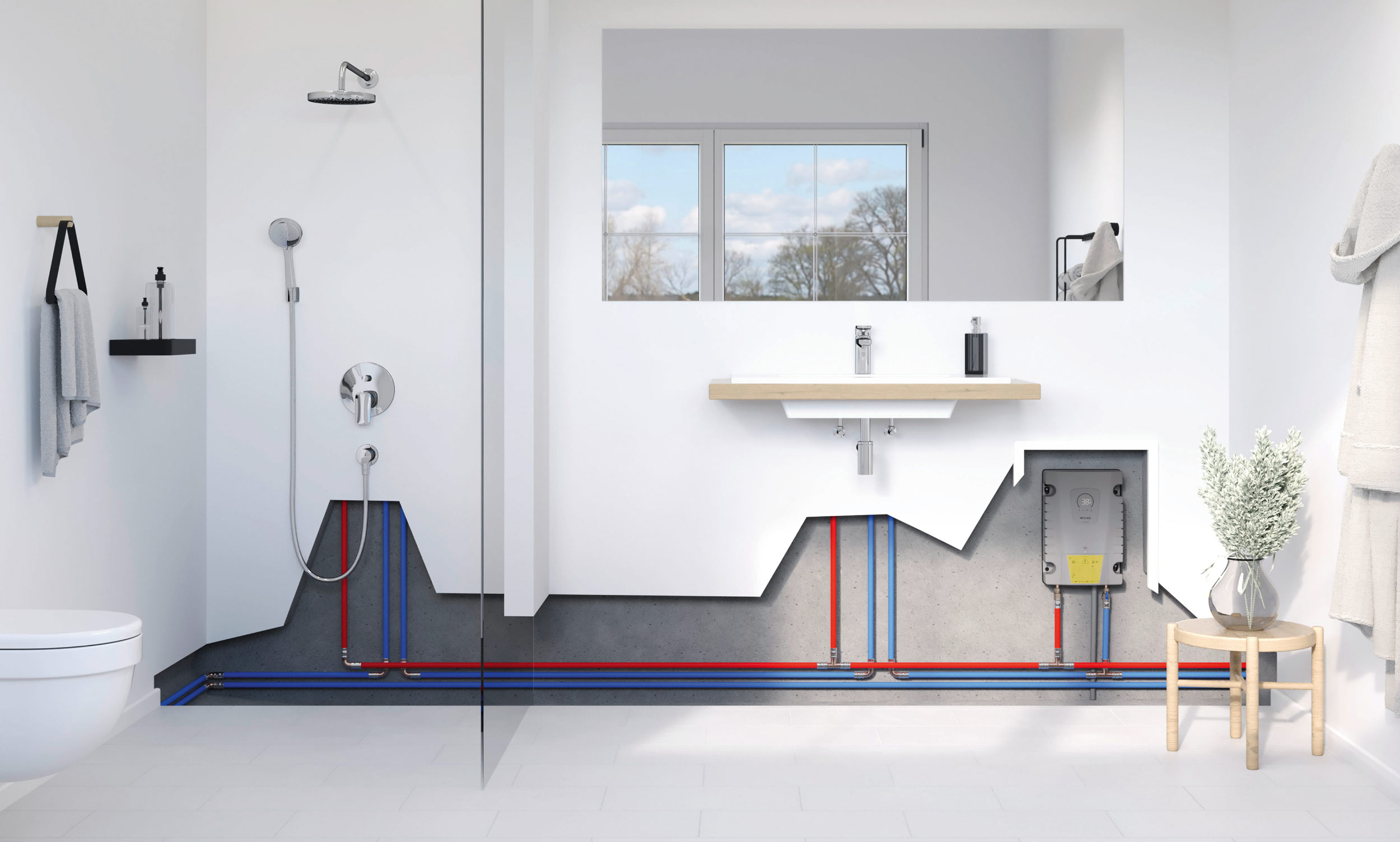

ISX 13: Hidden in the wall!
Integrated, robust and smartly networked
Product innovation
The new ISX 13 e-module instantaneous water heater has been specially developed for flush-mounted / pre-wall installation. Its concept is ideal for flexible integration into the building infrastructure: it enables simple installation without wall brackets and without removing the hood.
- Fully electronically controlled modular instantaneous water heater with sensor keypad and LED display for convenient and economical hot water supply to one or more draw-off points
- Temperature setting, definition of individual temperature profiles and viewing of consumption values via the supplied e-paper remote control FX Next or optionally via smartphone
- Always temperature accurate to the degree between 20 °C and 60 °C thanks to TWIN TEMPERATURE Control TTC® and dynamic flow rate control SERVOTRONIC®
- Bare wire heating system IES® ensures a longer service life, less scaling and is efficient and easy to maintain
- Electronic safety system with air bubble detection, temperature and pressure shut-off, and water stop function
- Multiple Power System MPS® determines the maximum power consumption at installation: 11 or 13.5 kW
- Exceptionally low switch-on water flow from 1,5 l/min thanks to innovative water flow technology
- IntegratedWLAN and Bluetooth® function for connection with smartphone and tablet (the free "Smart Control" app is required for this)
- Modbus interface for integration into building services
- Suitable for reheating preheated water (supply temperature up to 70 °C permissible)

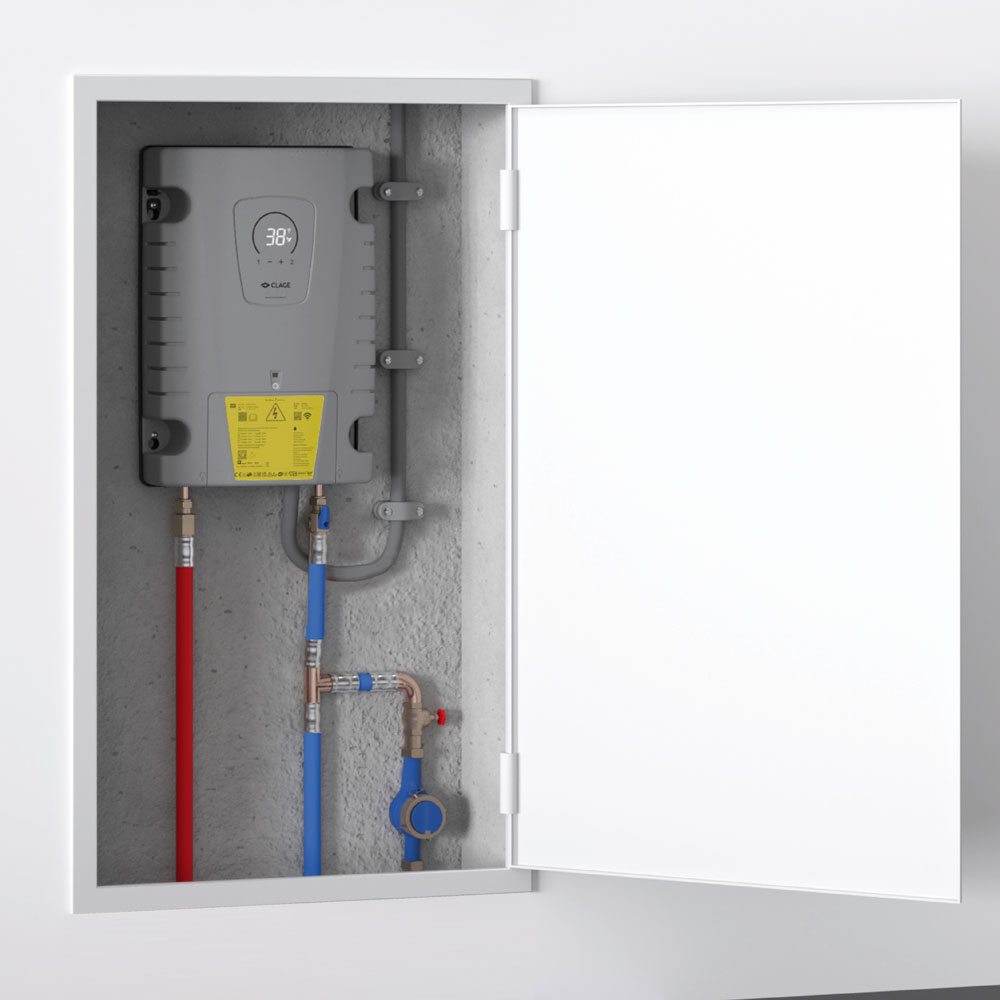

- Directinstallation option as part of a pre-wall installation (if required in the optionally available CLAGE flush-mounted cabinet with inspection flap), in drywall or above a suspended ceiling (without separate wall bracket)
- Assembly and electrical connection possible without removing the hood
- Free access water connection from below with ½ inch external thread and shut-off valve
- Dimensions (height × width × depth): 40.2 × 27.8 ×
9.9 cm
Technical data
>
Data. Values. Facts.
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|
1) The selected power rating determines the values of nominal current, cable diameter and hot water output
2) Also approved for pressureless operation
3) Temperature increase e.g. from 12 °C to 40 °C, mixed water
4) Depending on line pressure, selected temperature and inlet temperature
5) Alternatively connectable to 380 V
6) Suitable for reheating
Downloads
>
| Media type | Title | Date | Size | |
|---|---|---|---|---|
Product information sheet ISX13-ISX-PI-en.pdf 04.01.2024 > download |
Product information sheet | ISX13-ISX-PI-en.pdf | 04.01.2024 |
778 kB > download |
Operating and installation instructions ISX-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf 05.06.2024 > download |
Operating and installation instructions | ISX-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr.pdf | 05.06.2024 |
46,2 MB > download |
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 > download |
Safety instructions | Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf | 03.11.2023 |
371 kB > download |
Energy label ISX13-Energielabel_2023.pdf 11.01.2024 > download |
Energy label | ISX13-Energielabel_2023.pdf | 11.01.2024 |
1,8 MB > download |
ErP product sheet ISX12-ISX13-ISX27-ErP-Produktdatenblatt.pdf 28.09.2023 > download |
ErP product sheet | ISX12-ISX13-ISX27-ErP-Produktdatenblatt.pdf | 28.09.2023 |
101 kB > download |
Detailed view ISX-Hausflur-gefüllt-1000-q60.jpg 09.01.2024 > download |
Detailed view | ISX-Hausflur-gefüllt-1000-q60.jpg | 09.01.2024 |
68 kB > download |
Image photo ISX-Duschbad-Kueche-Milieu-v3-2500x1503-q62.jpg 09.01.2024 > download |
Image photo | ISX-Duschbad-Kueche-Milieu-v3-2500x1503-q62.jpg | 09.01.2024 |
294 kB > download |
Image photo ISX-HWR-Milieu-v2-1000-q40.jpg 09.01.2024 > download |
Image photo | ISX-HWR-Milieu-v2-1000-q40.jpg | 09.01.2024 |
43 kB > download |
Catalogue CLAGE-Complete-catalogue-en.pdf 16.10.2024 > download |
Catalogue | CLAGE-Complete-catalogue-en.pdf | 16.10.2024 |
11,0 MB > download |
Brochure CLAGE-ISX-Brochure-en.pdf 16.08.2024 > download |
Brochure | CLAGE-ISX-Brochure-en.pdf | 16.08.2024 |
2,9 MB > download |
BIM DX3_ISX.rfa 28.08.2024 > download |
BIM | DX3_ISX.rfa | 28.08.2024 |
1,8 MB > download |
|
BIM DX3_ISX.ifc 28.08.2024 > download |
BIM | DX3_ISX.ifc | 28.08.2024 |
7,7 MB > download |
|
Datanorm Datanorm.zip 03.06.2024 > download |
Datanorm | Datanorm.zip | 03.06.2024 |
40 kB > download |
|
GAEB GAEB.zip 03.06.2024 > download |
GAEB | GAEB.zip | 03.06.2024 |
725 kB > download |
Accessories
>

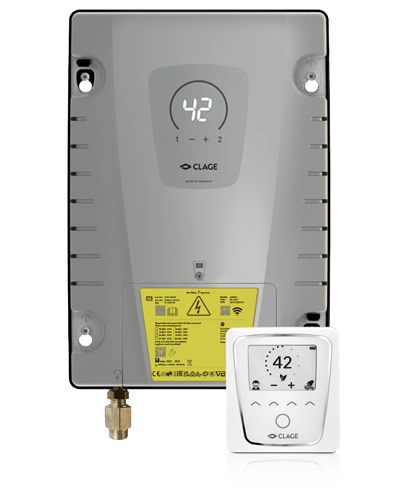

FX Next (included)
