E-mini instant water heater with tap
MCX Blue

Energy efficiency class A

(scale: A+ to F)

MCX Blue: 3.5 kW, 230 V
with plug
MCX (E) Blue: 3.5 kW, 230 V

This is where the MCX Blue is used.

Wash hand basin (e.g. guest toilet)
Sanitary facilities in commercial buildings

The system solution for washbasins.

“MCX Blue”, the combination of an E-mini instant water heater and a special tap, is the ideal system solution for the energy-efficient hot water supply of a wash basin.

Awards E-mini instant water heater with tap MCX Blue

Electronically controlled instant water heater with innovative single-lever mixing tap for energy-efficient hand-washing
Intuitive operation with perfect water temperature at the middle position of the control lever.
Saves water because of intelligent flow technology and very short water supply lines
Meets the highest requirements for water hygiene by separating water lines from the tap body as well as nickel- and lead-free materials
Touch button sensor controls at the instant water heater to set the outlet temperature to 35 °C, 38 °C or max. 45 °C
Very fast and simple system installation
Low pressure tap with Easy Fix mounting system, pull-up drain stopper and three flexible connection hoses ⅜ inch
Remote control module available as an accessory: FX wireless remote control
Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

Data. Values. Facts.



MCX Blue	MCX (E) Blue

Specification

Part number

Nominal power rating at 230 V [kW]

Maximum operating pressure [MPa (bar)]

Water connections (thread connections)

Hot water output at Δt = 25 K ¹⁾ [l/min]

Switch-on flow rate [l/min]

Maximum flow rate ²⁾ [l/min]

Supply voltage [1~ / N / PE 220–240 V AC] with plug: Schuko Typ-F (CEE 7/7)

Supply voltage [1~ / N / PE 220–240 V AC] permanent connection ³⁾

Nominal current at 230 V [A]

Required cable diameter [mm²]

Maximum inlet temperature [°C]

Solar-ready ⁴⁾

Protection class

Specific water resistance at 15 °C [Ωcm] ≥

Weight filled with water [kg], approx.

	Pour la France
1500-15133	1500-151332
3.5	3.5
1 (10)	1 (10)
G ⅜"	G ⅜"
2.0	2.0
1.2	1.2
1.9	1.9


15	15
1.5	1.5
70	70

IP 25	IP 25
1100	1100
1.5	1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

3) Mandatory in France. Also available with plug (Schuko Typ-F (CEE 7/7)).

4) Suitable for reheating

Downloads

	Media type	Title	Date	Size
Product information sheet MCX-Blue-PI-en.pdf 02.09.2024 > download	Product information sheet	MCX-Blue-PI-en.pdf	02.09.2024	698 kB > download
Operating and installation instructions MCX-GMA-de-en-fr-nl-pl-cs-pt.pdf 08.05.2024 > download	Operating and installation instructions	MCX-GMA-de-en-fr-nl-pl-cs-pt.pdf	08.05.2024	6,5 MB > download
		Older versions>
	Product information sheet	MCX2.0-GMA-de-en-fr-nl-pl-cs-pt-07-2022.pdf> download		> download
	Operating and installation instructions	MCX-GMA-de-en-fr-nl-pl-cs-pt-05-2022.pdf> download		> download
	Operating and installation instructions	MCX2.0-GMA-de-en-fr-nl-pl-cs-pt-06-2020.pdf> download		> download
	Operating and installation instructions	MCX-GMA-de-en-fr-nl-pl-cs-09-2017.pdf> download		> download
	Operating and installation instructions	MCX-GMA-de-en-fr-nl-pl-cs-03-2016.pdf> download		> download
	Operating and installation instructions	MCX-GMA-de-en-fr-nl-pl-cs-02-2016.pdf> download		> download
	Operating and installation instructions	MCX-GMA-de-en-fr-nl-pl-cs-07-2015.pdf> download		> download
	Operating and installation instructions	MCX-GMA-de-en-fr-nl-pl-cs-04-2015.pdf> download		> download
		Further versions on request
Operating and installation instructions EWT-GMA-de-en.pdf 08.09.2016 > download	Operating and installation instructions	EWT-GMA-de-en.pdf	08.09.2016	994 kB > download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 > download	Safety instructions	Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf	03.11.2023	371 kB > download
Fault diagnosis MCX-Fehlerdiagnose-de-en-04-2024.pdf 02.04.2024 > download	Fault diagnosis	MCX-Fehlerdiagnose-de-en-04-2024.pdf	02.04.2024	37 kB > download
Energy label MCX-Blue-Energielabel.pdf 04.03.2019 > download	Energy label	MCX-Blue-Energielabel.pdf	04.03.2019	219 kB > download
ErP product sheet MCX3-MCX7-ErP-Produktdatenblatt.pdf 13.02.2017 > download	ErP product sheet	MCX3-MCX7-ErP-Produktdatenblatt.pdf	13.02.2017	95 kB > download
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-MX-2024-08.pdf 15.08.2024 > download	CE Conformity	CE-Konformitaetserklaerung-nach-RED+RoHS3-MX-2024-08.pdf	15.08.2024	3,0 MB > download

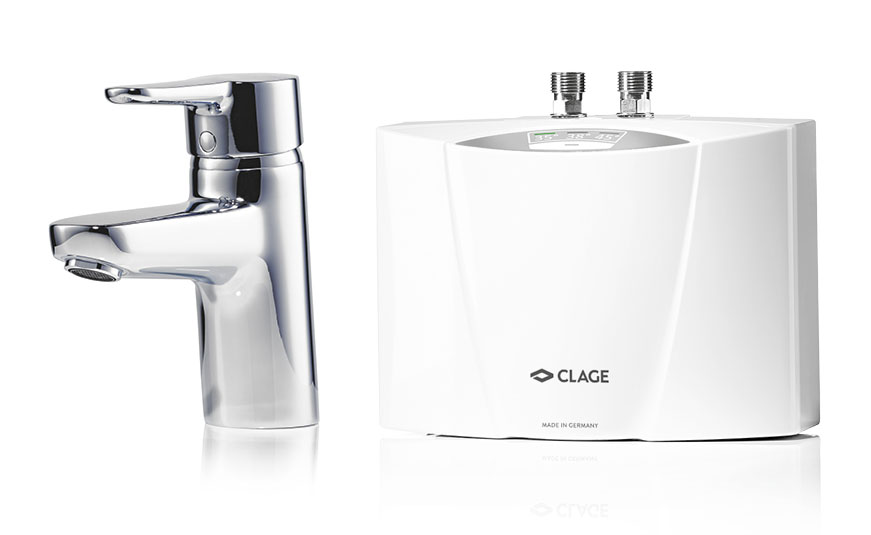

Product photo MCX-Blue-E-Kleindurchlauferhitzer.jpg 16.04.2018 > download	Product photo	MCX-Blue-E-Kleindurchlauferhitzer.jpg	16.04.2018	37 kB > download

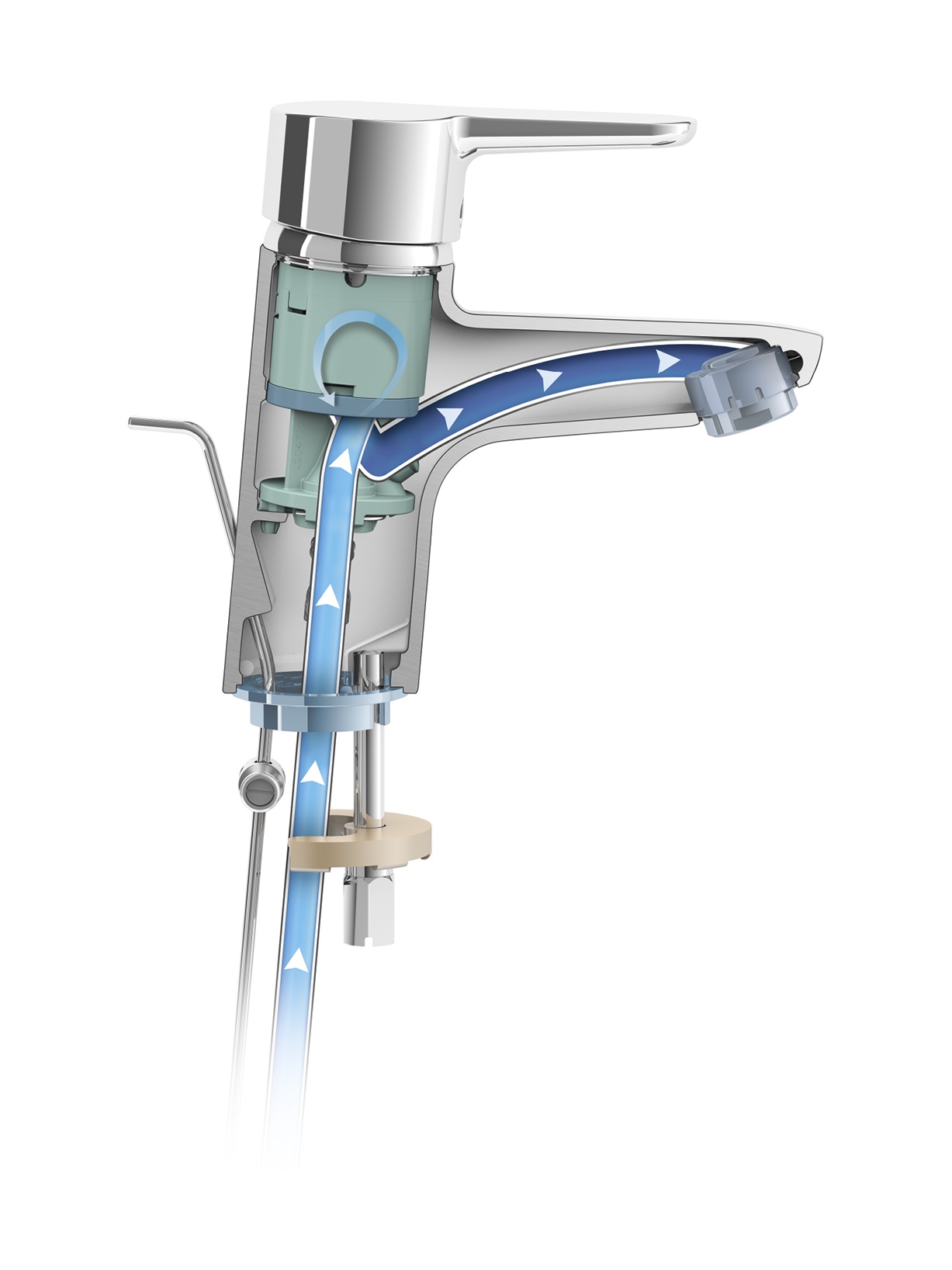

Detailed view MCX-Blue-Armatur-E-Kleindurchlauferhitzer-Schnittzeichnung.jpg 16.04.2018 > download	Detailed view	MCX-Blue-Armatur-E-Kleindurchlauferhitzer-Schnittzeichnung.jpg	16.04.2018	142 kB > download

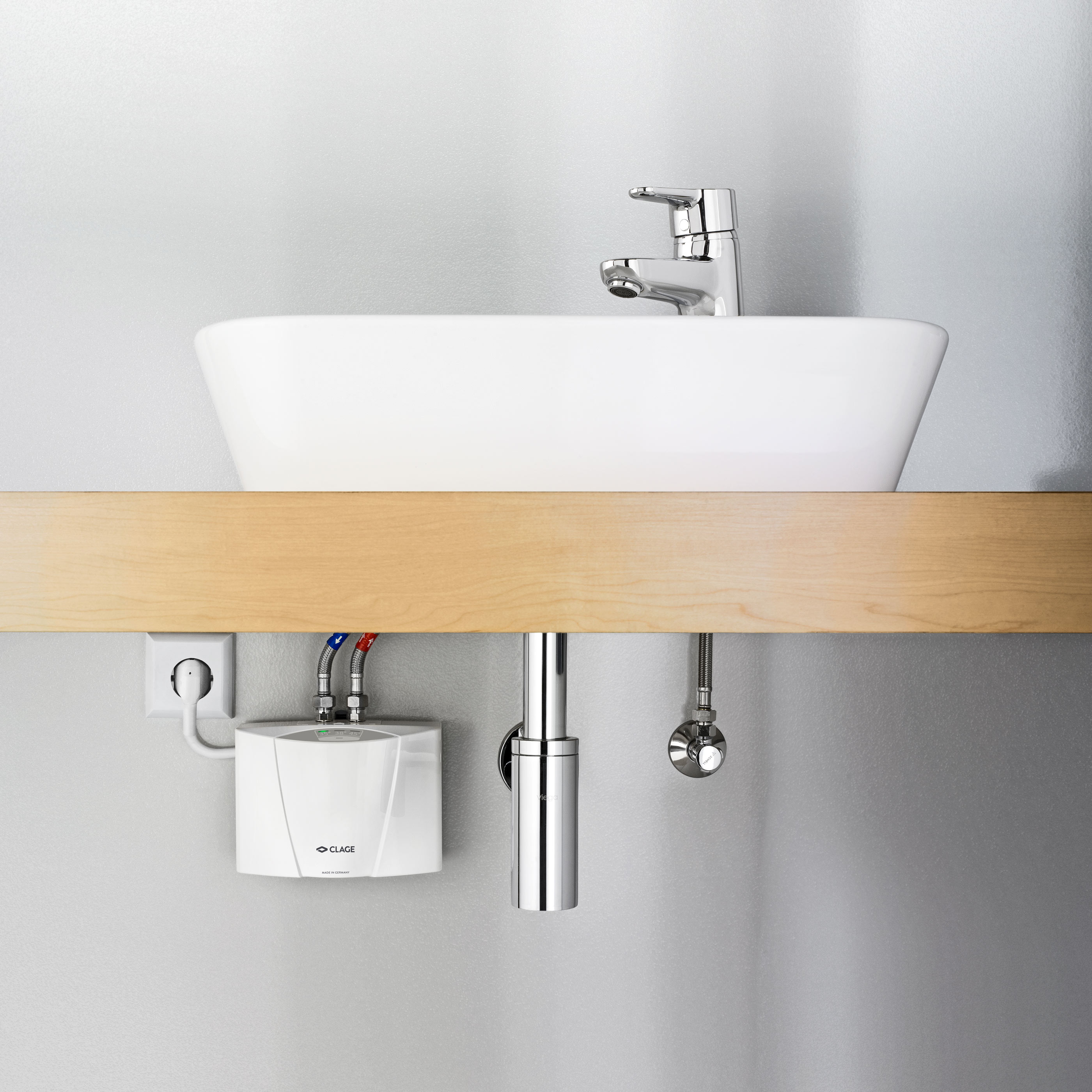

Image photo MCX-Blue-E-Kleindurchlauferhitzer.jpg 16.04.2018 > download	Image photo	MCX-Blue-E-Kleindurchlauferhitzer.jpg	16.04.2018	827 kB > download
Catalogue CLAGE-Complete-catalogue-en.pdf 20.12.2024 > download	Catalogue	CLAGE-Complete-catalogue-en.pdf	20.12.2024	11,0 MB > download
Catalogue CLAGE-Brochure-en.pdf 31.01.2023 > download	Catalogue	CLAGE-Brochure-en.pdf	31.01.2023	5,7 MB > download
Hotnews CLAGE_Hotnews_2023-EN-online.pdf 10.03.2023 > download	Hotnews	CLAGE_Hotnews_2023-EN-online.pdf	10.03.2023	13,9 MB > download
BIM MCX-Blue-Durchlauferhitzer-MCX3-001-BIM.ifc 17.04.2018 > download	BIM	MCX-Blue-Durchlauferhitzer-MCX3-001-BIM.ifc	17.04.2018	4,4 MB > download
BIM MCX-Blue-Armatur-EWT-001-BIM.ifc 17.04.2018 > download	BIM	MCX-Blue-Armatur-EWT-001-BIM.ifc	17.04.2018	3,4 MB > download
BIM MCX-Blue-002-BIM.rfa 17.04.2018 > download	BIM	MCX-Blue-002-BIM.rfa	17.04.2018	608 kB > download
BIM CLAGE_EWT_BLUE.rfa 12.12.2023 > download	BIM	CLAGE_EWT_BLUE.rfa	12.12.2023	676 kB > download
BIM CLAGE_EWT_BLUE.ifc 12.12.2023 > download	BIM	CLAGE_EWT_BLUE.ifc	12.12.2023	787 kB > download
Datanorm Datanorm.zip 03.06.2024 > download	Datanorm	Datanorm.zip	03.06.2024	40 kB > download
GAEB GAEB.zip 03.06.2024 > download	GAEB	GAEB.zip	03.06.2024	725 kB > download

Accessories

CSP 3 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 3 (< 2 l/min).

CSP 3: Part no. 0010-00421

Product information sheetAerators-PI-en.pdf (293 kB)

FXS 3 (D, M) (optional)

FX 3 Radio remote control plus Bluetooth^® radio adapter FXE in a set for installation in the instantaneous water heater. In addition to the operation at the device, the radio remote control enables the comfortable temperature adjustment of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure Bluetooth wireless transmission, stepless temperature selection via two keys, two fixed value keys and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × B × T): 5,8 × 12,5 × 1,9 cm

FXS 3 (D, M): Part no. 3200-34020

Operating and installation instructionsFXS3-GMA-de-en.pdf (1,84 MB)

FXE 3 (D, M) (optional)

Bluetooth^® radio adapter for installation in the instantaneous water heater to connect the electric instantaneous water heater to the Smartphone / Tablet or the CLAGE remote control. This extension is required if the devices are not yet equipped with a FX 3 radio remote control.

FXE 3 (D, M): Part no. 3200-34022
