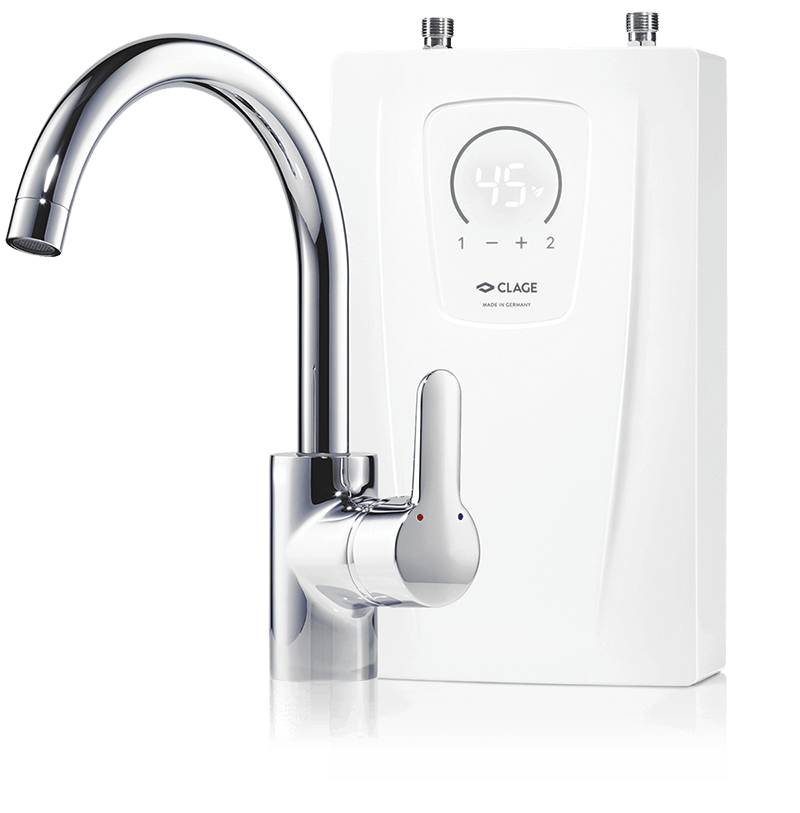

E-compact instantaneous water heater set
CEX-U / EAK

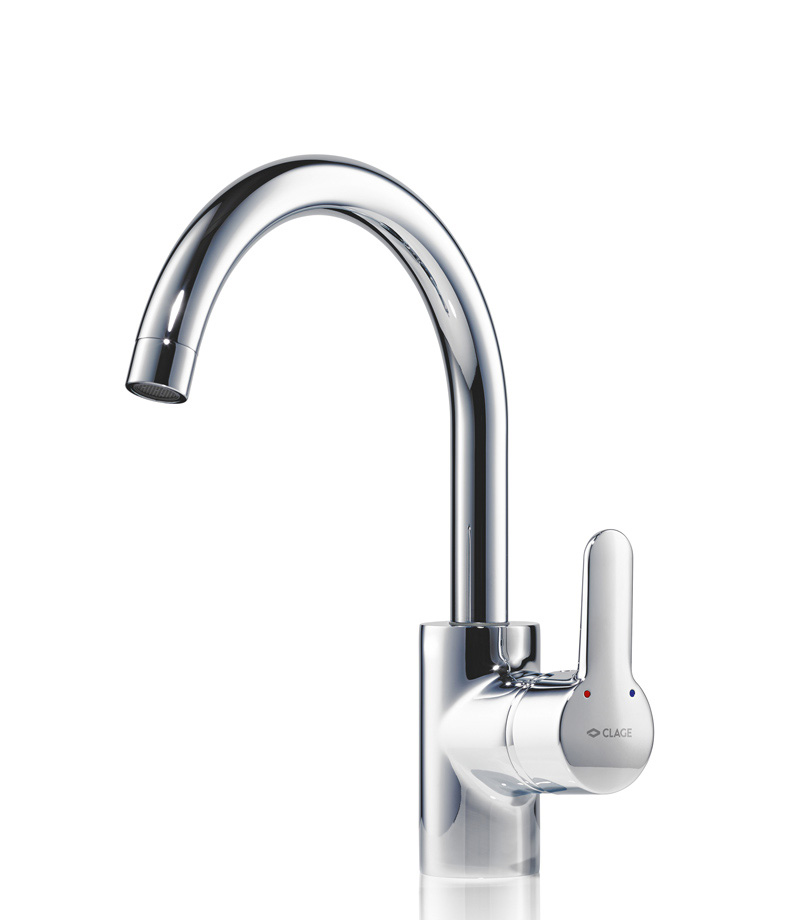

EAK (included)

Single-lever mixer tap with side lever and swivel spout 20 cm

EAK: Part no. 1100-04430

• Operating and installation instructionsEAK-GMA-de-en.pdf (1,22 MB)

FVS (included)

Flexible connecting hose ⅜ inch cap nut × ⅜ inch cap nut, length 50 cm

FVS: Part no. 89620

T-piece (included)

Special T-connector ⅜ inch cap nut × ⅜ inch angle valve 10 mm

T-piece: Part no. 89610

CSP 6 (optional)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).

CSP 6: Part no. 0010-00461

• Product information sheetAerators-PI-en.pdf (293 kB)

CSP 6a (optional)

Aerator with chrome tap adapter M 24a (suitable for taps with internal thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6a (< 3,5 l/min).

CSP 6a: Part no. 0010-0047

• Product information sheetAerators-PI-en.pdf (293 kB)

CSP 6i (optional)

Aerator with chrome tap adapter M 22i (suitable for taps with external thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6i (< 3,5 l/min).

CSP 6i: Part no. 0010-0046

• Product information sheetAerators-PI-en.pdf (293 kB)

FXS 3 (C) Radio remote control set (optional)

– ONLY FOR DEVICES MANUFACTURED AS OF 2022 – FX 3 radio remote control plus Bluetooth radio adapter FXE 3 (C) in a set for installation in the instantaneous water heater. In addition to operation on the appliance, the radio remote control enables convenient temperature setting of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure Bluetooth radio transmission, infinitely variable temperature selection via two buttons, two fixed value buttons and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm.

FXS 3 (C) Radio remote control set: Part no. 3200-34027

• Operating and installation instructionsFXS3-GMA-de-en.pdf (1,84 MB)

FXE 3 (C) extension (optional)

– ONLY FOR DEVICES MANUFACTURED AS OF 2022 – Bluetooth radio adapter for installation in the instantaneous water heater to connect the electric instantaneous water heater with the smartphone / tablet via app "Smart Control" or a CLAGE remote control. This extension is required if the units are not yet equipped with an FX 3 radio remote control.

FXE 3 (C) extension: Part no. 3200-34026

• Operating and installation instructionsFXS3-GMA-de-en.pdf (1,84 MB)

LAB (optional)

Load shedding module (electrical installation kit) with pre-installed cables, contactor and load shedding relay, for joint connection of an instant water heater with an output ≤ 13,5 kW and an electromechanical cooker at a cooker terminal outlet box, if no separate outlet is available for the instant water heater. IP 55. Dimensions (H×W×D): 18×13×8cm

LAB: Part no. 82260
