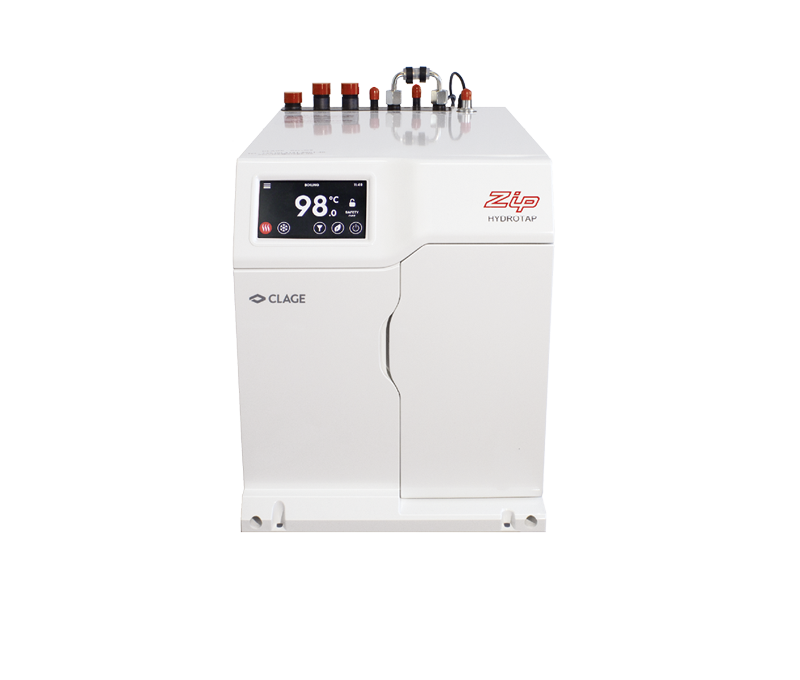

The Zip HydroTap G5 BC delivers
-
Boiling water
-
Chilled still water
The choice is yours: boiling hot or chilled?
Whether boiling hot or ice-cold water, with this water system you have both filtered and available at the touch of a button in tea kitchens and meeting points without waiting time. Especially suitable for small and medium-sized offices. The built-in filter improves the water quality, and the unit can be conveniently configured via the touch display.
The under-sink water system "Zip HydroTap BC" can be combined with the following taps:
- Electronic water system for under-sink installation for immediate provision of filtered, boiling and cooled water
- Touch display for menu navigation, activating the energy-saving modus and scalding protection as well as temperature setting of the water
- With R290 coolant to meet the latest environmental and climate protection requirements
- Electronic temperature control
- Easy-to-replace sub-micron particle filter cartridge with activated carbon filter, filters hazardous substances > 0.2 micron and improves the taste of water
- Leakage protection system
- Various electronic taps with safety function and button operation selectable
- Dimensions (height × width × depth): 33.3 × 28 × 45.5 cmPlease order tap, CLARIS filter and filter head separately!
Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||||||||||||
|
|
1) With supplied adapter G ⅜"
2) Connection hose G ½” to G ½” is required (not included in scope of delivery)
3) Standard cup with 167 ml
4) Standard glass with 200 ml
5) At 12 hours in standby mode
Downloads
>
| Media type | Title | Date | Size | |
|---|---|---|---|---|
Product information sheet Zip-HydroTap-G5-BC-PI-en.pdf 26.04.2022 > download |
Product information sheet | Zip-HydroTap-G5-BC-PI-en.pdf | 26.04.2022 |
868 kB > download |
Operating instructions Zip-HydroTap-G5-BC20-User-Guide-de-en-fr.pdf 29.03.2022 > download |
Operating instructions | Zip-HydroTap-G5-BC20-User-Guide-de-en-fr.pdf | 29.03.2022 |
2,6 MB > download |
Operating and installation instructions Zip-HydroTap-G5-BC20-GMA-de-en-fr.pdf 06.04.2023 > download |
Operating and installation instructions | Zip-HydroTap-G5-BC20-GMA-de-en-fr.pdf | 06.04.2023 |
2,2 MB > download |
| Older versions> | ||||
| Operating and installation instructions | Zip-HydroTap-G5-BC20-GMA-de-en-fr-03-2022.pdf> download | > download | ||
| Further versions on request | ||||
CE Conformity CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf 01.07.2022 > download |
CE Conformity | CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf | 01.07.2022 |
2,6 MB > download |
Hotnews CLAGE_Hotnews_2023-EN-online.pdf 10.03.2023 > download |
Hotnews | CLAGE_Hotnews_2023-EN-online.pdf | 10.03.2023 |
13,9 MB > download |
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 10.05.2023 |
6,6 MB > download |
BIM Zip HydroTap G5 BC 20.ifc 24.11.2022 > download |
BIM | Zip HydroTap G5 BC 20.ifc | 24.11.2022 |
76 kB > download |
|
Datanorm Datanorm.zip 03.06.2024 > download |
Datanorm | Datanorm.zip | 03.06.2024 |
40 kB > download |
|
GAEB GAEB.zip 03.06.2024 > download |
GAEB | GAEB.zip | 03.06.2024 |
725 kB > download |
Accessories
>
KXF 2.1 (included)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.
KXF 2.1: Part no. 893702
Touch-Free BC, polished chrome (optional)
Electronic tap unit for Zip HydroTap BC with IR sensors and function display for hygienic, touch-free operation, holding function for convenient jug filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Touch-Free BC, polished chrome: Part no. 4100-44541
Classic Plus BC, polished chrome (optional)
Electronic tap for Zip HydroTap BC with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.
Classic Plus BC, polished chrome: Part no. 4100-44806
Classic Plus BC, brushed chrome (optional)
Electronic tap for Zip HydroTap BC with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.
Classic Plus BC, brushed chrome: Part no. 4100-44807
Classic Plus BC, matte black (optional)
Electronic tap for Zip HydroTap BC with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.
Classic Plus BC, matte black: Part no. 4100-44808
Classic BC, polished chrome (optional)
Electronic tap for Zip HydroTap BC with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BC, polished chrome: Part no. 4100-44506
Classic BC, brushed chrome (optional)
Electronic tap for Zip HydroTap BC with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BC, brushed chrome: Part no. 4100-44507
Classic BC, matte black (optional)
Electronic tap for Zip HydroTap BC with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic BC, matte black: Part no. 4100-44508
Arc BC, polished chrome (optional)
Electronic tap for Zip HydroTap BC with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc BC, polished chrome: Part no. 4100-44509
Arc BC, brushed chrome (optional)
Electronic tap for Zip HydroTap BC with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc BC, brushed chrome: Part no. 4100-44510
Arc BC, matte black (optional)
Electronic tap for Zip HydroTap BC with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.
Arc BC, matte black: Part no. 4100-44511
DTK (optional)
The digital temperature controller for Zip devices is used to keep the temperature in the cupboard under 35 °C when normal ventilation is not sufficient. The digital controller operates independently of the undersink unit and will require a separate 230 V socket.
DTK: Part no. 893159
- Operating and installation instructionsDTK-GMA-de-en.pdf (2,81 MB)
Filter head FK (optional)
For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.
Filter head FK: Part no. 845071
KKF lime filter cartridge (optional)
Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.
KKF lime filter cartridge: Part no. 845064
AS-KKF (optional)
For connecting a CLAGE filter cartridge KKF to Zip units. Connection set for installing the lime filter to the hot water bypass of the water system.
AS-KKF: Part no. 845073
KXF 2 (optional)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models before 02.2017.
KXF 2: Part no. 891290
KXF 2.1 (optional)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.
KXF 2.1: Part no. 893702
KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.
KXT: Part no. 4100-44560
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)
KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.
KXT: Part no. 4100-44561
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)
KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.
KXT: Part no. 4100-44562
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)
KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: polished chrome.
KXTV: Part no. 4100-44565
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)
KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: brushed chrome.
KXTV: Part no. 4100-44566
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)
KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: matte black.
KXTV: Part no. 4100-44567
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)
KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.
KXV: Part no. 4100-44165
KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: brushed chrome.
KXV: Part no. 4100-44166
KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: matte black.
KXV: Part no. 4100-44167
