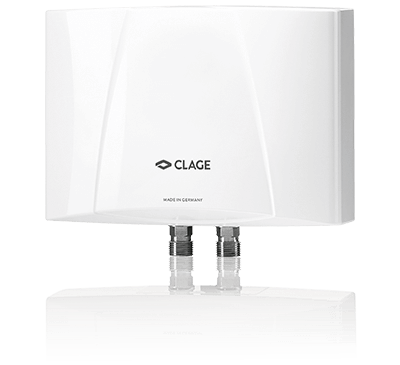

E-mini instant water heater, vented (oversink model)
M-O

E-mini instant water heater, <nobr>vented (oversink model)</nobr> M-O

Energy efficiency class A

(scale: A+ to F)

  • M 3-O: 3.5 kW, 230 V
    with plug
  • M 3-O (E): 3.5 kW, 230 V
  • M 4-O: 4.4 kW, 230 V
  • M 6-O: 5.7 kW, 230 V
  • M 7-O: 6.5 kW, 400 V

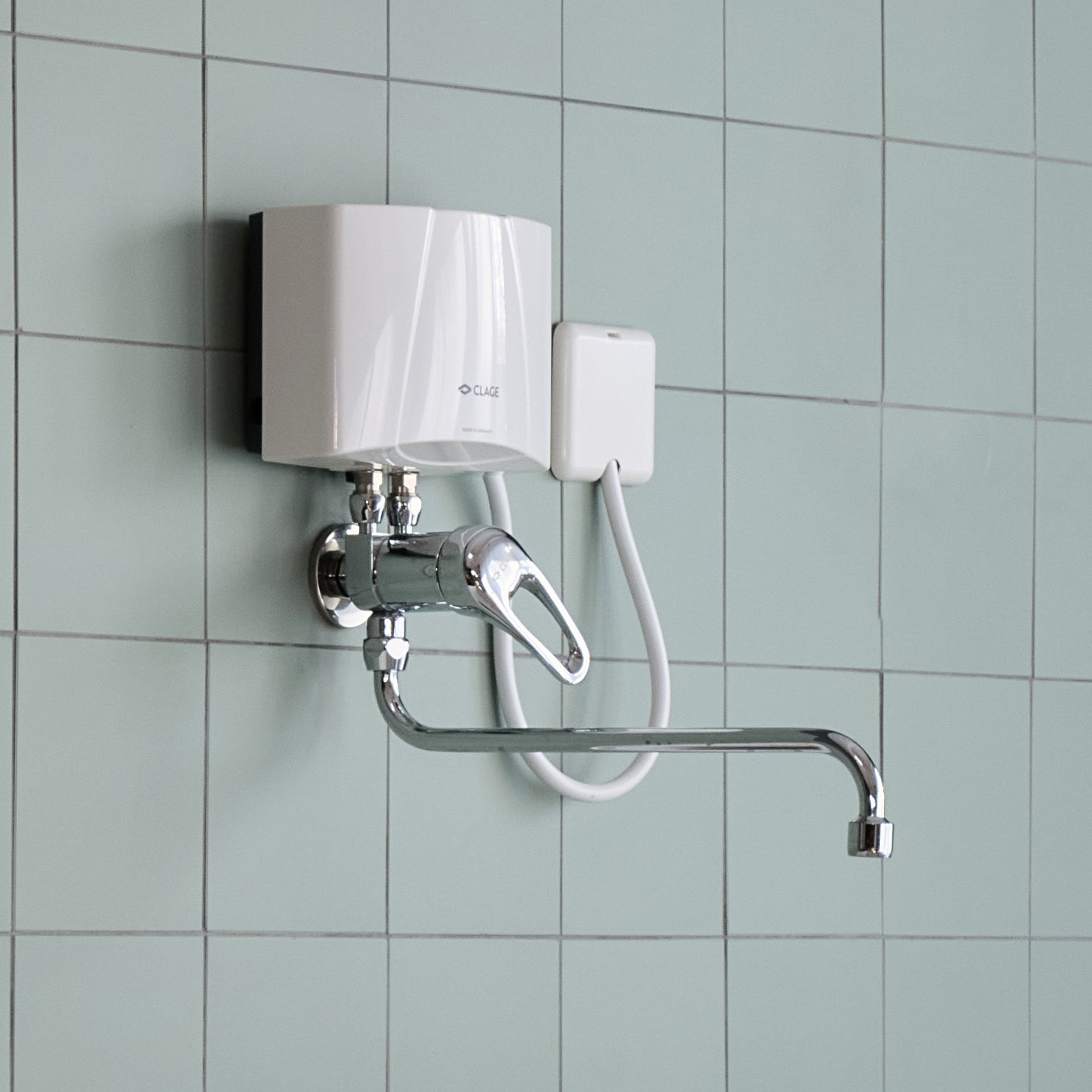

This is where the M-O is used.

  1. Disposal sink

    Disposal sink

  2. Wash hand basin <nobr>(e.g. guest toilet)</nobr>

    Wash hand basin (e.g. guest toilet)

  3. Sanitary facilities in commercial buildings

    Sanitary facilities in commercial buildings

  4. Staff kitchen

    Staff kitchen

Efficient flow technology.

The pressureless M-O small instantaneous water heater is ideally suited as an energy-saving replacement unit for conventional small accumulators combined with low-pressure fittings.

  • Hydraulically controlled instantaneous water heater (over-sink unit) in mini-format for the energy-efficient supply of a wash basin or utility sink
  • The full heating power switches on automatically as soon as water flows through the device
  • Efficient flow technology for optimum water jet with economical water consumption
  • IES® bare-wire heating system with replaceable heating cartridge ensures longer service life, less calcification and is efficient and easy to maintain
  • Removable type plate cover for access to the central cover screw and water quantity adjustment
  • Ready to plug in (3.5 kW) or mains cable (from 4.4 kW), length: 65 cm
  • Pressureless design, only suitable for low-pressure fittings
  • Jet regulator insert for mouthpiece M 22/24 on the fitting
  • Also available as complete sets with fitting: M / SMB
  • Dimensions (height × width × depth): 13.5 × 18.6 × 8.7 cm

Technical data

>

Data. Values. Facts.






















E-mini instant water heater, <nobr>vented (oversink model)</nobr> M 3-O E-mini instant water heater, <nobr>vented (oversink model)</nobr> M 3-O (E) E-mini instant water heater, <nobr>vented (oversink model)</nobr> M 4-O E-mini instant water heater, <nobr>vented (oversink model)</nobr> M 6-O E-mini instant water heater, <nobr>vented (oversink model)</nobr> M 7-O
Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen Disposal sink Wash hand basin <nobr>(e.g. guest toilet)</nobr> Sanitary facilities in commercial buildings Staff kitchen
M 3-O M 3-O (E) M 4-O M 6-O M 7-O
Specification
Part number
Nominal power rating at 230 V [kW]
Nominal power rating at 400 V [kW]
Maximum operating pressure [MPa (bar)]
Water connections (thread connections)
Hot water output at Δt = 25 K 1) [l/min]
Switch-on flow rate [l/min]
Maximum flow rate 2) [l/min]
Supply voltage [1~ / N / PE 230 V AC] with plug: Schuko Typ-F (CEE 7/7)
Supply voltage [1~ / N / PE 230 V AC] permanent connection 3)
Supply voltage [1~ / N / PE 230 V AC] permanent connection
Supply voltage [2~ / PE 400 V AC] permanent connection
Nominal current at 230 V [A]
Nominal current at 400 V [A]
Required cable diameter [mm²]
Maximum inlet temperature [°C]
Protection class
Specific water resistance at 15 °C [Ωcm] ≥
Weight filled with water [kg], approx.
Pour la France
1500-17113 1500-171132 1500-17114 1500-17116 1500-17117
3.5 3.5 4.4 5.7
6.5
0 (0) 0 (0) 0 (0) 0 (0) 0 (0)
G ⅜" G ⅜" G ⅜" G ⅜" G ⅜"
2.0 2.0 2.5 3.3 3.7
1.3 1.3 1.8 2.2 2.4
2.0 2.0 2.5 3.3 3.7




15 15 19 25
16
1.5 1.5 2.5 4.0 2.5
20 20 20 20 20
IP 25 IP 25 IP 25 IP 25 IP 25
1100 1100 1100 1100 1100
1.5 1.5 1.5 1.5 1.5

1) Temperature increase e.g. from 15 °C to 40 °C

2) Limited flow amount for optimal temperature increase by water flow adjustment

3) Mandatory in France. Also available with plug (Schuko Typ-F (CEE 7/7)).

Downloads

>

Media type Title Date Size

Product information sheet

M-O-PI-en.pdf

18.10.2018

> download
Product information sheet M-O-PI-en.pdf 18.10.2018 495 kB
> download

Operating and installation instructions

MO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf

29.09.2022

> download
Operating and installation instructions MO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es.pdf 29.09.2022 8,0 MB
> download
  Older versions>
 Operating and installation instructionsMO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es-03-2021.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es-07-2019-BUCH-Online.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-cs-sk-sv-pt-10-2018-BUCH-Offset.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es-11-2017.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-cs-sk-sv-pt-09-2017.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-cs-sk-sv-pt-06-2016.pdf> download> download
 Operating and installation instructionsMO-GMA-de-en-fr-nl-pl-cs-sk-no-sv-bg-fi-pt-es-02-2015.pdf> download> download
  Further versions on request

Safety instructions

Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf

03.11.2023

> download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 371 kB
> download

Energy label

M3-Energielabel.pdf

06.09.2017

> download
Energy label M3-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M6-Energielabel.pdf

06.09.2017

> download
Energy label M6-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M7-Energielabel.pdf

06.09.2017

> download
Energy label M7-Energielabel.pdf 06.09.2017 220 kB
> download

Energy label

M4-Energielabel.pdf

06.09.2017

> download
Energy label M4-Energielabel.pdf 06.09.2017 220 kB
> download

ErP product sheet

M3-M7-ErP-ErP-Produktdatenblatt.pdf

09.02.2017

> download
ErP product sheet M3-M7-ErP-ErP-Produktdatenblatt.pdf 09.02.2017 96 kB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RoHS3-M-2024-08.pdf

15.08.2024

> download
CE Conformity CE-Konformitaetserklaerung-nach-RoHS3-M-2024-08.pdf 15.08.2024 2,4 MB
> download

Image photo


09.02.2017

> download

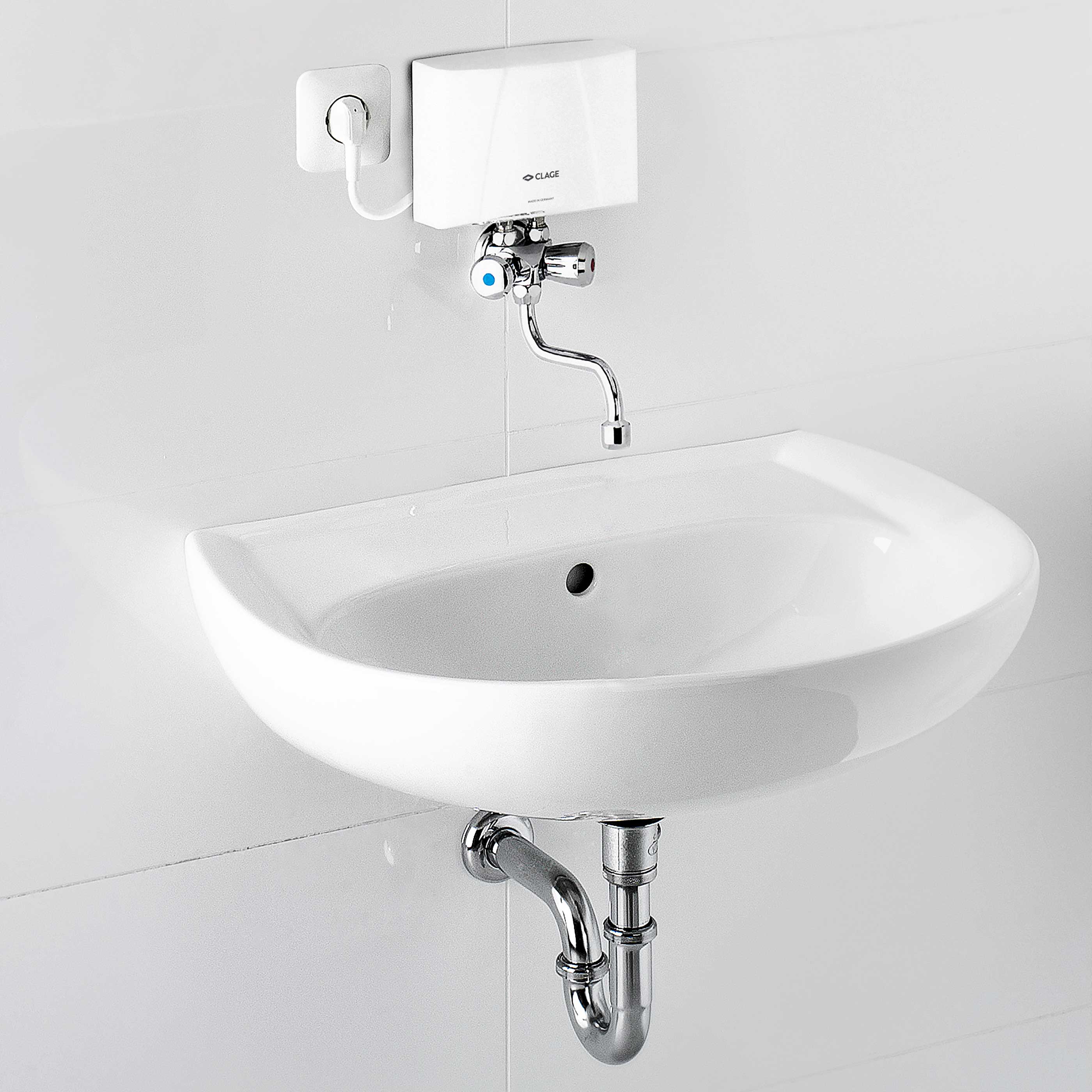

Image photo MO-Einsatz-Milieufoto.jpg 09.02.2017 359 kB
> download

Catalogue

CLAGE-Complete-catalogue-en.pdf

16.10.2024

> download
Catalogue CLAGE-Complete-catalogue-en.pdf 16.10.2024 11,0 MB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

BIM

M3O-002-BIM.rfa

30.04.2018

> download
BIM M3O-002-BIM.rfa 30.04.2018 908 kB
> download

BIM

M4O-002-BIM.rfa

30.04.2018

> download
BIM M4O-002-BIM.rfa 30.04.2018 908 kB
> download

BIM

M6O-002-BIM.rfa

30.04.2018

> download
BIM M6O-002-BIM.rfa 30.04.2018 908 kB
> download

BIM

M7O-002-BIM.rfa

30.04.2018

> download
BIM M7O-002-BIM.rfa 30.04.2018 540 kB
> download

Datanorm

Datanorm.zip

03.06.2024

> download
Datanorm Datanorm.zip 03.06.2024 40 kB
> download

GAEB

GAEB.zip

03.06.2024

> download
GAEB GAEB.zip 03.06.2024 725 kB
> download

Accessories

>

CSP 3

CSP 3 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 3 (< 2 l/min).

CSP 3: Part no. 0010-00421

CSP 6

CSP 6 (included)

Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).

CSP 6: Part no. 0010-00461

CSP 3a

CSP 3a (optional)

Aerator with chrome tap adapter M 24a (suitable for taps with internal thread at the outlet)

CSP 3a: Part no. 0010-0043

CSP 3i

CSP 3i (optional)

Aerator with chrome tap adapter M 22i (suitable for taps with external thread at the outlet)

CSP 3i: Part no. 0010-0042

LS 12

LS 12 (optional)

Swivel spout 12  cm with screw connection M 22

LS 12: Part no. 0010-0052

LS 20

LS 20 (optional)

Swivel spout 20 cm with screw connection M 22

LS 20: Part no. 0010-0054

LS 30

LS 30 (optional)

Swivel spout 30 cm with screw connection M 22

LS 30: Part no. 0010-0055

SMB / LS

SMB / LS (optional)

Special oversink mixer tap with swivel spout 16 cm

SMB / LS: Part no. 1100-04100

SME

SME (optional)

Single lever oversink mixer tap with swivel spout 16 cm

SME: Part no. 1100-04150
