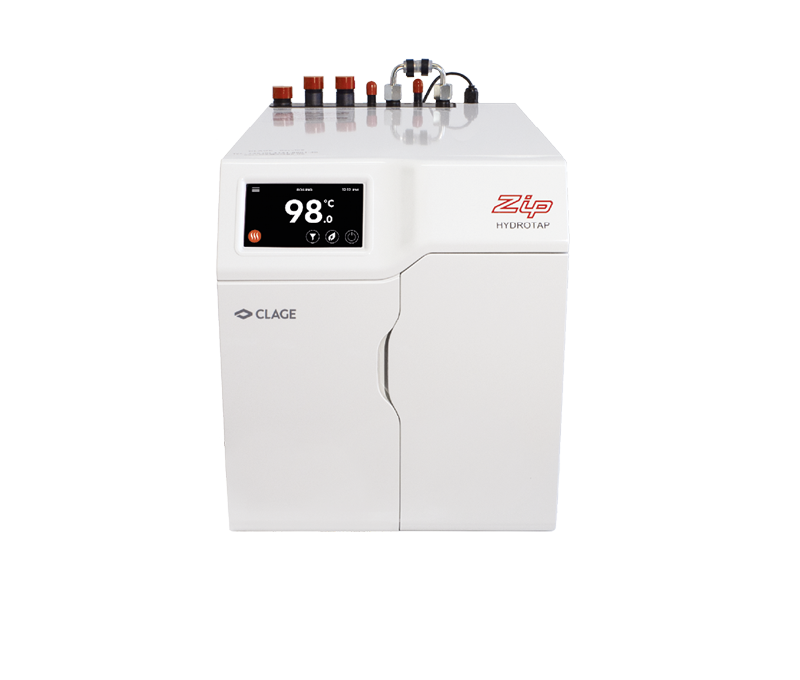

The Zip HydroTap G5 B delivers
-
Boiling water
It's teatime - Don't wait , drink tea right away!
At the push of a button, this water system delivers filtered boiling hot water in seconds. It is ideal for the increased demand in kitchenettes of large offices, restaurants and hotels. The built-in filter improves the water quality, and the energy-saving function can be easily configured via the touch display.
The under-sink water system "Zip HydroTap B" can be combined with the following taps:
- Electronic boiling water system for under-sink installation for immediate supply of boiling water.
- Touch display for menu navigation, for activating the energy saver modus and scalding protection as well as temperature setting of the water
- Electronic temperature control
- Easy-to-replace sub-micron particle filter cartridge with activated carbon filter, filters hazardous substances > 0.2 micron and improves the taste of water
- Leakage protection system
- Various electronic taps with safety function and button operation selectable
- Dimensions (height × width × depth): 33.3 × 28 × 31.3 cmPlease order fitting, CLARIS filter and filter head separately!
Technical data
>
Data. Values. Facts.
|
|||||||||||||||||||||||||||||
|
|
1) With supplied adapter G ⅜"
2) Connection hose G ½” to G ½” is required (not included in scope of delivery)
3) Standard cup with 167 ml
4) At 12 hours in standby mode
Downloads
>
| Media type | Title | Date | Size | |
|---|---|---|---|---|
Product information sheet Zip-HydroTap-G5-B-PI-en.pdf 26.04.2022 > download |
Product information sheet | Zip-HydroTap-G5-B-PI-en.pdf | 26.04.2022 |
833 kB > download |
Operating instructions Zip-HydroTap-G5-B60-User-Guide-de-en-fr.pdf 29.03.2022 > download |
Operating instructions | Zip-HydroTap-G5-B60-User-Guide-de-en-fr.pdf | 29.03.2022 |
2,4 MB > download |
Operating and installation instructions Zip-HydroTap-G5-B60-GMA-de-en-fr.pdf 06.04.2023 > download |
Operating and installation instructions | Zip-HydroTap-G5-B60-GMA-de-en-fr.pdf | 06.04.2023 |
1,6 MB > download |
| Older versions> | ||||
| Operating and installation instructions | Zip-HydroTap-G5-B60-GMA-de-en-fr-03-2022.pdf> download | > download | ||
| Further versions on request | ||||
CE Conformity CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf 01.07.2022 > download |
CE Conformity | CE Konformitätserklärung nach RoHS3 Zip G5 2022 06 v2.pdf | 01.07.2022 |
2,6 MB > download |
Hotnews CLAGE_Hotnews_2023-EN-online.pdf 10.03.2023 > download |
Hotnews | CLAGE_Hotnews_2023-EN-online.pdf | 10.03.2023 |
13,9 MB > download |
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 10.05.2023 |
6,6 MB > download |
BIM Zip HydroTap G5 B 60.ifc 24.11.2022 > download |
BIM | Zip HydroTap G5 B 60.ifc | 24.11.2022 |
90 kB > download |
|
Datanorm Datanorm.zip 03.06.2024 > download |
Datanorm | Datanorm.zip | 03.06.2024 |
40 kB > download |
|
GAEB GAEB.zip 03.06.2024 > download |
GAEB | GAEB.zip | 03.06.2024 |
725 kB > download |
Accessories
>
KXF 2.1 (included)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models since 02.2017 and G5 models since 2022.
KXF 2.1: Part no. 893702
Touch-Free B, chromé brillant (optional)
Electronic tap unit for Zip HydroTap B with IR sensors and function display for hygienic, touch-free operation, holding function for convenient jug filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Touch-Free B, chromé brillant: Part no. 4100-44542
Classic Plus B, polished chrome (optional)
Electronic tap for Zip HydroTap B with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.
Classic Plus B, polished chrome: Part no. 4100-44812
Classic Plus B, brushed chrome (optional)
Electronic tap for Zip HydroTap B with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.
Classic Plus B, brushed chrome: Part no. 4100-44813
Classic Plus B, matte black (optional)
Electronic tap for Zip HydroTap B with top-mounted control buttons (rubberised), function display, dedicated button for convenient jug filling, fixed spout 12 cm, height 21.4 cm, Ø 35 mm hole required.
Classic Plus B, matte black: Part no. 4100-44814
Classic B, polished chrome (optional)
Electronic tap for Zip HydroTap B with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic B, polished chrome: Part no. 4100-44512
Classic B, brushed chrome (optional)
Electronic tap for Zip HydroTap B with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic B, brushed chrome: Part no. 4100-44513
Classic B, matte black (optional)
Electronic tap for Zip HydroTap B with operating buttons at the top, function display, holding function for convenient pot filling, fixed spout 12 cm, height 21 cm, Ø 35 mm hole required.
Classic B, matte black: Part no. 4100-44514
Arc B, polished chrome (optional)
Electronic tap for Zip HydroTap B with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc B, polished chrome: Part no. 4100-44515
Arc B, brushed chrome (optional)
Electronic tap for Zip HydroTap B with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm Hole drilling required.
Arc B, brushed chrome: Part no. 4100-44516
Arc B, matte black (optional)
Electronic tap for Zip HydroTap B with lateral control button, fixed pipe outlet 16 cm, height 35 cm, Ø 35 mm hole drilling required.
Arc B, matte black: Part no. 4100-44517
Filter head FK (optional)
For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.
Filter head FK: Part no. 845071
KKF lime filter cartridge (optional)
Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.
KKF lime filter cartridge: Part no. 845064
AS-KKF (optional)
For connecting a CLAGE filter cartridge KKF to Zip units. Connection set for installing the lime filter to the hot water bypass of the water system.
AS-KKF: Part no. 845073
KXF 2 (optional)
Sub-micron particle filter cartridge filters contaminants > 0.2 microns and additionally improves the taste of the water. For Zip HydroTap® G4 models before 02.2017.
KXF 2: Part no. 891290
KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: polished chrome.
KXT: Part no. 4100-44560
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)
KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: brushed chrome.
KXT: Part no. 4100-44561
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)
KXT (optional)
For tap “Arc”: The optional stainless steel draining tray with waste water connection allows for flexible installation of the electronic dispensing tap at any location away from the sink. Finish: matte black.
KXT: Part no. 4100-44562
- Installation accessoriesZip-HydroTap- G4-Arc-Montageschablone-de-en-fr.pdf (34 kB)
KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: polished chrome.
KXTV: Part no. 4100-44565
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)
KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and chrome extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: brushed chrome.
KXTV: Part no. 4100-44566
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)
KXTV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional stainless steel draining tray with waste water connection and extension allows for flexible installation of the electronic dispensing tap at any location away from the sink. Extension by 13.5 cm. Finish: matte black.
KXTV: Part no. 4100-44567
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.ifc (384 kB)
- BIMKXTV fuer Classic_Classic Plus_Touch-Free.rfa (372 kB)
- Installation accessoriesZip-Montageschablone-Tableau-de-en-fr.pdf (91 kB)
KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: polished chrome.
KXV: Part no. 4100-44165
KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional chrome extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: brushed chrome.
KXV: Part no. 4100-44166
KXV (optional)
For tap "Classic", "Classic Plus", "Touch-Free": The optional extension allows for raising the electronic dispensing tap by 13.5 cm. Finish: matte black.
KXV: Part no. 4100-44167
