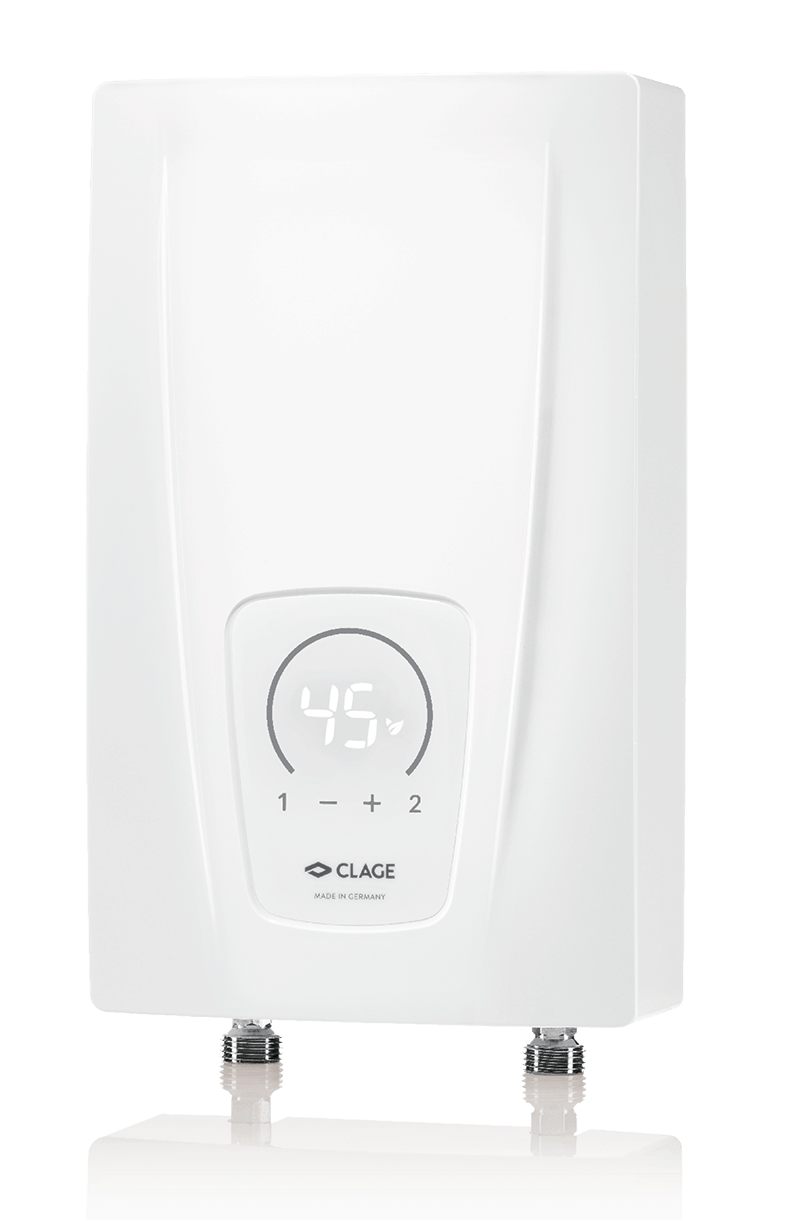

E-compact instant water heater
CEX 9
![E-compact instant water heater CEX 9](/images/Products/e-compact-instant-water-heaters/CLAGE-e-compact-instant-water-heaters-CEX9+06409663226af2f3114485aa4e0a23b4_head.png)
Energy efficiency class A
(Scale: A+ to F)
- CEX 9: 6.6/8.8 kW, 220–240 V
This is where the CEX 9 is used.
-
Handwashbasin
-
Shower
-
Kitchen sink
-
Washstand
-
Double washbasin
Fast and efficient
water
heating .
Compact instantaneous water heater for washbasins, kitchen sinks or even shower rooms. The connected load ranges from 6.6 to 8.8 kW 220 to 240 V. This means that the unit has sufficient capacity to heat water at 35°C to 55°C at around 5 l/min. Since the incoming cold water in many southern countries is warmer than in Central and Northern Europe, the relatively low device output is nevertheless sufficient for a pleasant showering experience or similar applications. During installation, the instantaneous water heater can be limited to 6.6 kW. Thus, the device is versatile and sets new standards in terms of fast and efficient water heating with IES® heating technology.
- Electronically controlled instant water heater in compact design
- Push-button operation panel with LCD display for precise temperature setting between
20 °C and55 °C - In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
- Two programming buttons for individual pre-set temperatures limits as well as function indicators
- Easy installation facilitated by small dimensions and external ½ inch water connectors
- Precise temperatures due to TWIN TEMPERATURE control TTC® up to the capacity of the appliance
- With the Multiple Power System MPS®, the maximum power rating is set at the time of installation: 6.6 or
8.8 kW - Remote control module available as an accessory: FXS 3 (C)
- Can also be controlled by tablet or smartphone (from iOS 9 / Android-OS 4.4) (this requires an FXE3 (C) radio adapter and the "Smart Control" app)
- Dimensions (height × width × depth): 29.4 × 17.7 × 10.4 cm
Technical data
>
Data. Values. Facts.
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|
1) The selected power rating determines the values of nominal current, cable diameter and hot water output
2) Temperature increase e.g. from 12 °C to 45 °C
3) Limited flow amount for optimal temperature increase
4) Suitable for reheating
Downloads
>
Media type | Title | Date | Size | |
---|---|---|---|---|
![]() Product information sheet CEX9-PI-en.pdf 23.12.2021 > download |
Product information sheet | CEX9-PI-en.pdf | 23.12.2021 |
409 kB > download |
![]() Operating and installation instructions CX3-CEX9-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sv-el.pdf 29.08.2022 > download |
Operating and installation instructions | CX3-CEX9-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sv-el.pdf | 29.08.2022 |
6,0 MB > download |
Older versions> | ||||
Operating and installation instructions | CX3-CEX9-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sv-el-04-2021.pdf> download | > download | ||
Further versions on request | ||||
![]() Image-only instructions CX3-230V-Bilderanleitung-Uebertisch.pdf 07.05.2021 > download |
Image-only instructions | CX3-230V-Bilderanleitung-Uebertisch.pdf | 07.05.2021 |
967 kB > download |
![]() Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 > download |
Safety instructions | Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf | 03.11.2023 |
371 kB > download |
![]() Energy label CEX9-Energielabel.pdf 13.02.2017 > download |
Energy label | CEX9-Energielabel.pdf | 13.02.2017 |
220 kB > download |
![]() CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2024-08.pdf 15.08.2024 > download |
CE Conformity | CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2024-08.pdf | 15.08.2024 |
752 kB > download |
![]() Product photo CEX-CX3-Produktfoto.jpg 27.12.2021 > download |
Product photo | CEX-CX3-Produktfoto.jpg | 27.12.2021 |
50 kB > download |
![]() Product photo CEX-CX3-45Grad-Produktfoto-links.jpg 27.12.2021 > download |
Product photo | CEX-CX3-45Grad-Produktfoto-links.jpg | 27.12.2021 |
76 kB > download |
![]() Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 > download |
Price list | CLAGE-Product-Price-List-PPL-en.pdf | 10.05.2023 |
6,6 MB > download |
![]() GAEB GAEB.zip 03.06.2024 > download |
GAEB | GAEB.zip | 03.06.2024 |
725 kB > download |
Accessories
>
![Accessories set](/assets/gfx/accessories/0a09c8844ba8f0936c20bd791130d6b6.png)
Accessories set (included)
Two seals, two aerator and a G ½-inch valve as a water flow regulation and shut-off option.
Accessories set: Part no. 82568
![CSO](/assets/gfx/accessories/38b3eff8baf56627478ec76a704e9b52.png)
CSO (optional)
Single-lever wall mixer tap (open-outlet) with swivel spout 16 cm
CSO: Part no. 1100-04165
- Operating and installation instructionsCSO-SSO-GMA-de-en.pdf (420 kB)
![CSP 6](/assets/gfx/accessories/70efdf2ec9b086079795c442636b55fb.png)
CSP 6 (optional)
Aerator insert for tap adapter M 22/24 at the tap. The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6 (< 3,5 l/min).
CSP 6: Part no. 0010-00461
- Product information sheetAerators-PI-en.pdf (293 kB)
![CSP 6a](/assets/gfx/accessories/a5771bce93e200c36f7cd9dfd0e5deaa.png)
CSP 6a (optional)
Aerator with chrome tap adapter M 24a (suitable for taps with internal thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6a (< 3,5 l/min).
CSP 6a: Part no. 0010-0047
- Product information sheetAerators-PI-en.pdf (293 kB)
![CSP 6i](/assets/gfx/accessories/d67d8ab4f4c10bf22aa353e27879133c.png)
CSP 6i (optional)
Aerator with chrome tap adapter M 22i (suitable for taps with external thread at outlet). The aerator at the tap supports the energy- and water-saving operation of the compact instant water heater. The new special CSP aerators mix air into the water and thus create a uniform water stream that does not splatter but softly cascades down. CSP 6i (< 3,5 l/min).
CSP 6i: Part no. 0010-0046
- Product information sheetAerators-PI-en.pdf (293 kB)
![CXH](/assets/gfx/accessories/1ff1de774005f8da13f42943881c655f.png)
CXH (optional)
Adjustable hand shower for instant water heaters, three modes adjustable, anti-scale insert, chrome. Dimensions: 22.5 cm length, shower head Ø 97 mm
CXH: Part no. 0300-0086
- Product information sheetCXH-PI-en.pdf (1,63 MB)
- Operating and installation instructionsCXH-GMA-de-en-fr-nl-pl-cs-sk-sv-pt-ar.pdf (1,82 MB)
![EAK](/assets/gfx/accessories/d645920e395fedad7bbbed0eca3fe2e0.png)
EAK (optional)
Single-lever mixer tap with side lever and swivel spout 20 cm
EAK: Part no. 1100-04430
- Operating and installation instructionsEAK-GMA-de-en.pdf (1,22 MB)
![FXS 3 (C) Radio remote control set](/assets/gfx/accessories/1d7f7abc18fcb43975065399b0d1e48e.png)
FXS 3 (C) Radio remote control set (optional)
– ONLY FOR DEVICES MANUFACTURED AS OF 2022 – FX 3 radio remote control plus Bluetooth radio adapter FXE 3 (C) in a set for installation in the instantaneous water heater. In addition to operation on the appliance, the radio remote control enables convenient temperature setting of the instantaneous water heater over a distance of approx. 10 metres in the building. Secure Bluetooth radio transmission, infinitely variable temperature selection via two buttons, two fixed value buttons and an LCD display, magnetic wall bracket and batteries (included). IP 20. Dimensions (H × W × D): 5.8 × 12.5 × 1.9 cm.
FXS 3 (C) Radio remote control set: Part no. 3200-34027
- Operating and installation instructionsFXS3-GMA-de-en.pdf (1,84 MB)
![FXE 3 (C) extension](/assets/gfx/accessories/b3e3e393c77e35a4a3f3cbd1e429b5dc.png)
FXE 3 (C) extension (optional)
– ONLY FOR DEVICES MANUFACTURED AS OF 2022 – Bluetooth radio adapter for installation in the instantaneous water heater to connect the electric instantaneous water heater with the smartphone / tablet via app "Smart Control" or a CLAGE remote control. This extension is required if the units are not yet equipped with an FX 3 radio remote control.
FXE 3 (C) extension: Part no. 3200-34026
- Operating and installation instructionsFXS3-GMA-de-en.pdf (1,84 MB)
![FXS Next (C)](/assets/gfx/accessories/b73ce398c39f506af761d2277d853a92.png)
FXS Next (C) (optional)
Bluetooth radio remote control for electronic instantaneous water heaters, temperature selection and settings via sensor keys in an intuitive menu navigation, with e-paper display, Bluetooth connection for secure data transmission between radio remote control and instantaneous water heater, FXE 3 radio adapter for installation in the instantaneous water heater (C series) included in the scope of delivery of FXS Next, batteries and magnetic wall bracket included in the scope of delivery.
FXS Next (C): Part no. 3200-34024
- Operating and installation instructionsFX-Next-Online-GMA-de-en-fr-nl-pt-es-pl-ru-cs-sk-bg-sr-sv-el.pdf (2,15 MB)
Interesting features.
-
Smart Control-ready
-
Remote control (optional)
-
Solar-compatible, suitable for reheating
