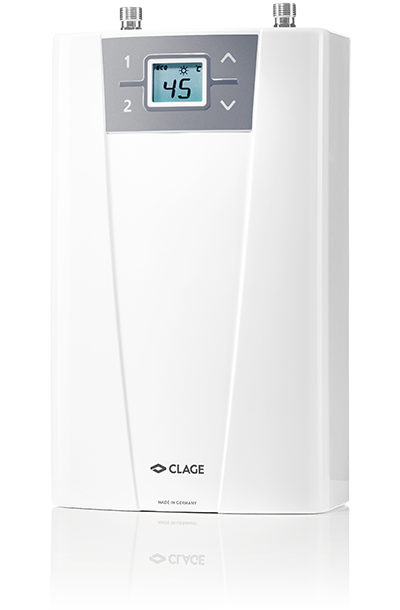

E-compact instant water heater
CEX-U (CX2)

Energy efficiency class A

(Scale: A+ to F)

CEX-U
no longer available
CEX-U (13,5 kW)
no longer available

This is where the CEX-U is used.

Kitchen sink
Washstand
Double washbasin

Archive product

This product is no longer available (EoL = End of Life).

If you have any questions, please contact our after-sales service or visit our online spare parts shop.

Electronically controlled instant water heater in compact design for installation under the sink
Push-button operation panel with LCD display for precise temperature setting between 20 °C and 60 °C
In the comfort zone between 35 °C and 43 °C, the temperature can be set in 0.5 degree increments
Two programming buttons for individual pre-set temperatures, optional temperature limitation as well as function indicators
Adding cold water is no longer necessary
Easy installation under the kitchen sink facilitated by small dimensions and external ⅜" water connectors for closed-outlet or open-outlet installation
With power cable for permanent electrical connection
Precise temperatures due to TWIN TEMPERATURE control TTC^® up to the capacity of the appliance
With the Multiple Power System MPS^®, the maximum power rating is set at the time of installation
Remote control module available as an accessory: FX wireless remote control
Dimensions (height × width × depth): 29.4 × 17.7 × 10.8 cm

Technical data

Data. Values. Facts.



CEX-U	CEX-U (13,5 kW)

Part number

2400-26213

2400-26413

Downloads

	Media type	Title	Date	Size
Product information sheet Aerators-PI-en.pdf 18.10.2018 > download	Product information sheet	Aerators-PI-en.pdf	18.10.2018	293 kB > download
Product information sheet FX-PI-en.pdf 18.10.2018 > download	Product information sheet	FX-PI-en.pdf	18.10.2018	495 kB > download
Product information sheet CEX-U-(CX2)-PI-en.pdf 13.07.2021 > download	Product information sheet	CEX-U-(CX2)-PI-en.pdf	13.07.2021	1,6 MB > download
Operating instructions CEXU-CEX-CEX9U-CEX9-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf 06.06.2023 > download	Operating instructions	CEXU-CEX-CEX9U-CEX9-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf	06.06.2023	6,2 MB > download
		Older versions>
	Operating instructions	CEXU-CEX-CEX9U-CEX9-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk-11-2021.pdf> download		> download
	Operating instructions	CEXU-CEX-CEX9U-CEX9-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk-05-2020.pdf> download		> download
	Operating instructions	CEXU-CEX-CEX9U-CEX9-v2.2-GA-de-en-fr-nl-pt-es-pl-sv-cs-sk-09-2018.pdf> download		> download
	Operating instructions	CEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-06-2016.pdf> download		> download
	Operating instructions	CEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-05-2016.pdf> download		> download
	Operating instructions	CEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-v2.1-06-2015.pdf> download		> download
	Operating instructions	CEXU-CEX-CEX9U-CEX9-GA-10-Sprachen-v2.1-04-2015.pdf> download		> download
		Further versions on request
Installation instructions CEXU-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf 05.11.2021 > download	Installation instructions	CEXU-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk.pdf	05.11.2021	9,9 MB > download
		Older versions>
	Installation instructions	CEXU-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk-06-2021.pdf> download		> download
	Installation instructions	CEXU-v2.2-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk-05-2020.pdf> download		> download
	Installation instructions	CEXU-v2.2-MA-de-en-fr-nl-pt-es-pl-sv-cs-sk-09-2018.pdf> download		> download
	Installation instructions	CEXU-MA-10-Sprachen-08-2017.pdf> download		> download
	Installation instructions	CEXU-MA-10-Sprachen-08-2016.pdf> download		> download
	Installation instructions	CEXU-MA-10-Sprachen-v2.1-08-2015.pdf> download		> download
	Installation instructions	CEXU-MA-10-Sprachen-v2.1-06-2015.pdf> download		> download
	Installation instructions	CEXU-MA-10-Sprachen-v2.1-05-2015.pdf> download		> download
		Further versions on request
Operating and installation instructions CX2-DX2-Beiblatt-60Grad-de-en-fr-nl-pt-es-pl-sv-cs-sk-03-2021.pdf 31.03.2021 > download	Operating and installation instructions	CX2-DX2-Beiblatt-60Grad-de-en-fr-nl-pt-es-pl-sv-cs-sk-03-2021.pdf	31.03.2021	29 kB > download
Safety instructions Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf 03.11.2023 > download	Safety instructions	Sicherheitshinweise-Durchlauferhitzer-de-en-fr-nl-pt-es-pl-sv-cs-sk-bg-no-fi-ru-sr-el-it-tr-ro.pdf	03.11.2023	371 kB > download
Energy label CEX-U-Energielabel.pdf 13.02.2017 > download	Energy label	CEX-U-Energielabel.pdf	13.02.2017	220 kB > download
ErP product sheet CEX-CEX-U-CEX9-CEX9-U-ErP-Produktdatenblatt.pdf 13.02.2017 > download	ErP product sheet	CEX-CEX-U-CEX9-CEX9-U-ErP-Produktdatenblatt.pdf	13.02.2017	234 kB > download
CE Conformity CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2024-08.pdf 15.08.2024 > download	CE Conformity	CE-Konformitaetserklaerung-nach-RED+RoHS3-CX-2024-08.pdf	15.08.2024	3,0 MB > download

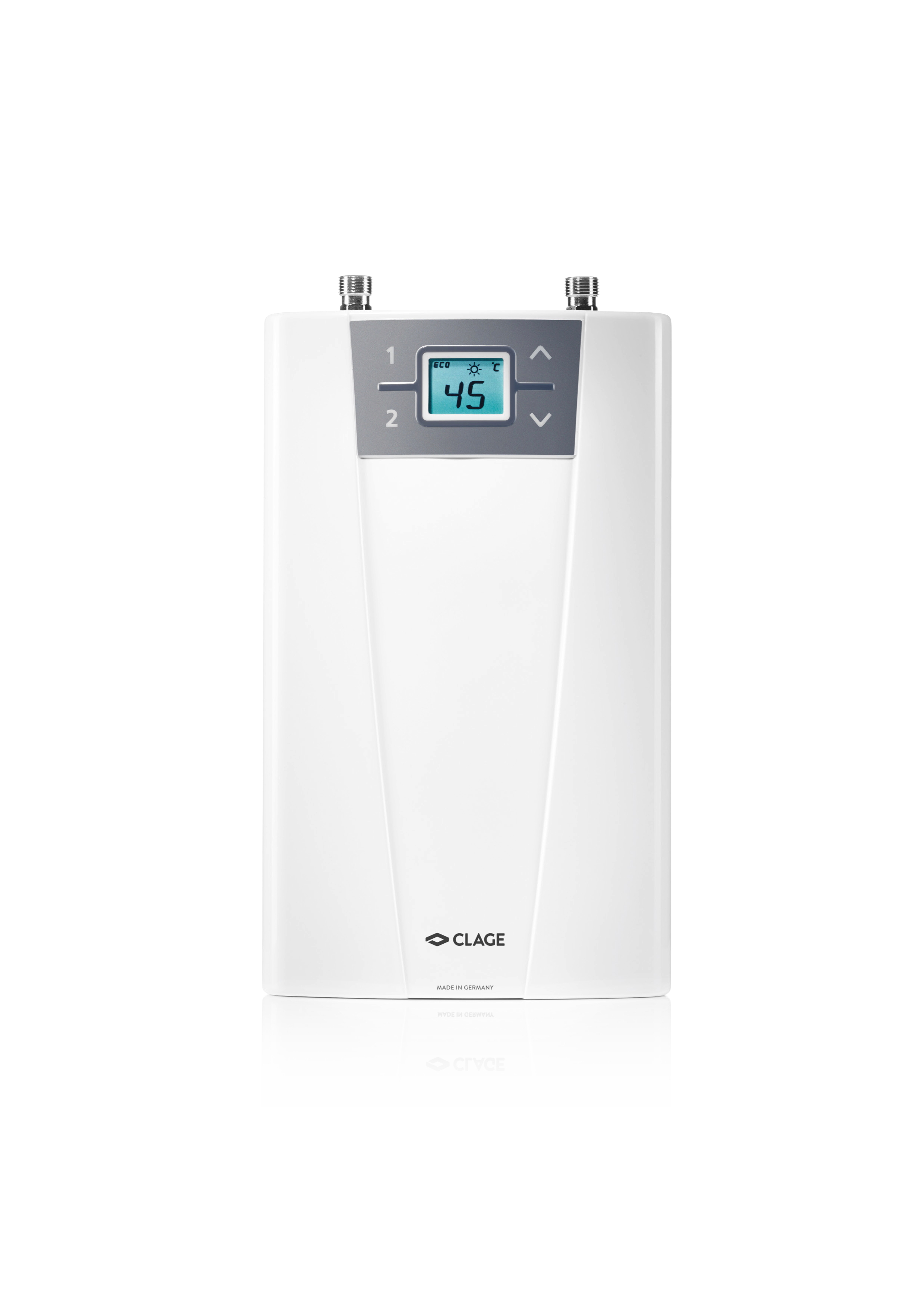

Product photo CEX-U_frontal-HighRes.jpg 11.05.2017 > download	Product photo	CEX-U_frontal-HighRes.jpg	11.05.2017	531 kB > download

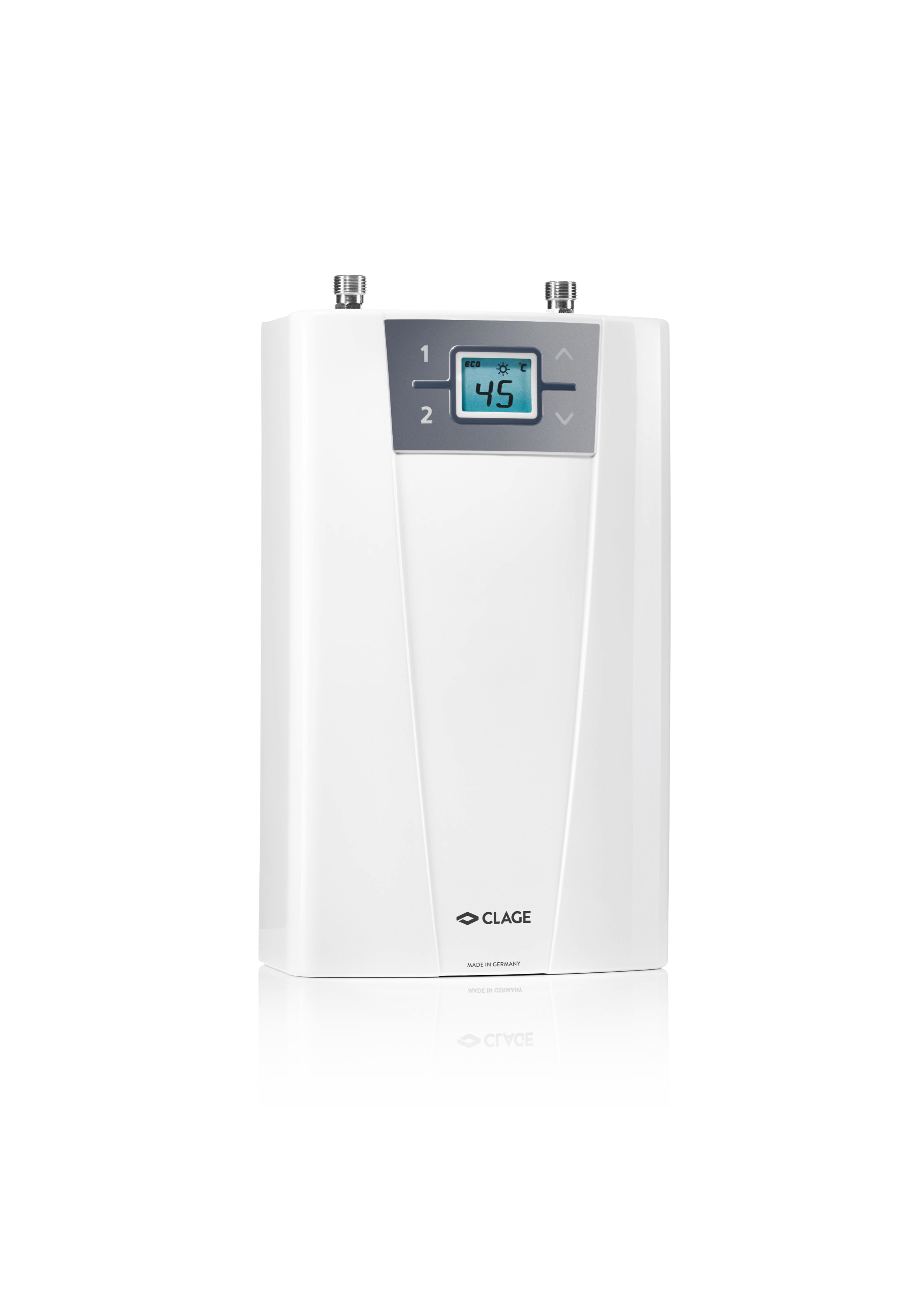

Product photo CEX-U_links-HighRes.jpg 11.05.2017 > download	Product photo	CEX-U_links-HighRes.jpg	11.05.2017	550 kB > download

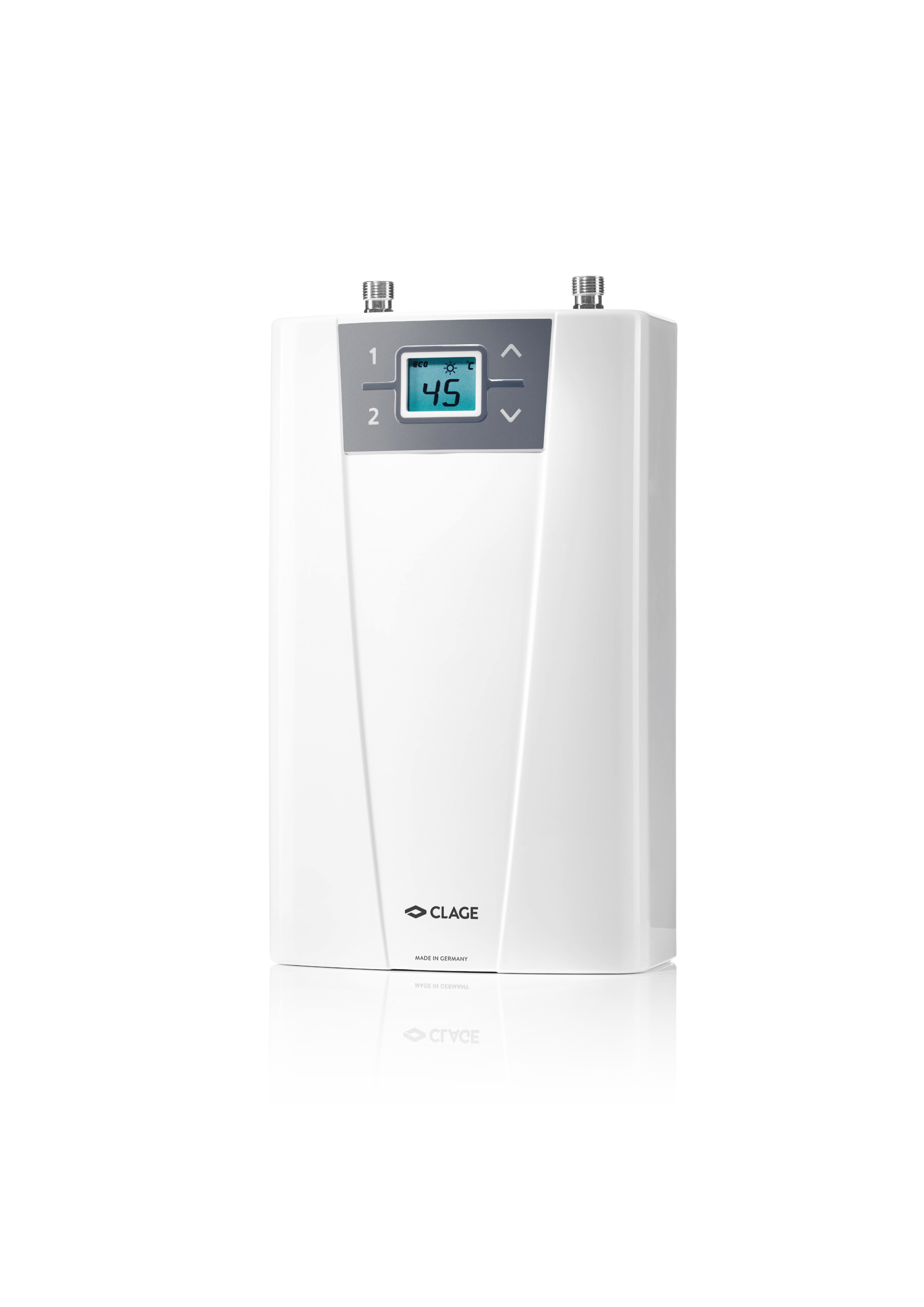

Product photo CEX-U_rechts-HighRes.jpg 11.05.2017 > download	Product photo	CEX-U_rechts-HighRes.jpg	11.05.2017	570 kB > download

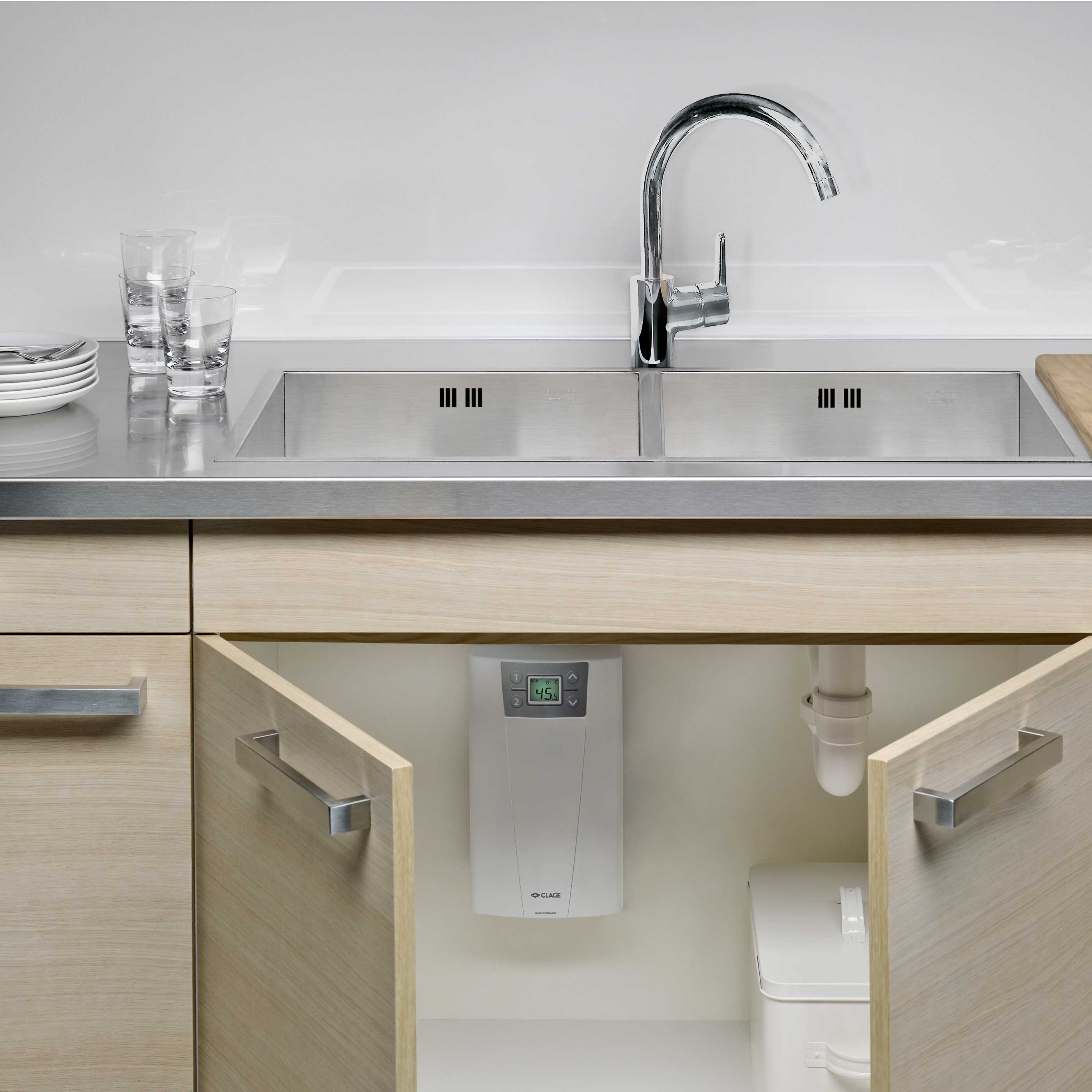

Image photo CEX-U-Milieufoto.jpg 11.05.2017 > download	Image photo	CEX-U-Milieufoto.jpg	11.05.2017	272 kB > download
BIM CEXU-002-BIM.rfa 16.04.2018 > download	BIM	CEXU-002-BIM.rfa	16.04.2018	1,2 MB > download
BIM CEX13U-001-BIM.ifc 16.04.2018 > download	BIM	CEX13U-001-BIM.ifc	16.04.2018	2,2 MB > download
BIM CEX11U-001-BIM.ifc 16.04.2018 > download	BIM	CEX11U-001-BIM.ifc	16.04.2018	2,2 MB > download
