Boiling water heater
Zip Hydroboil Plus

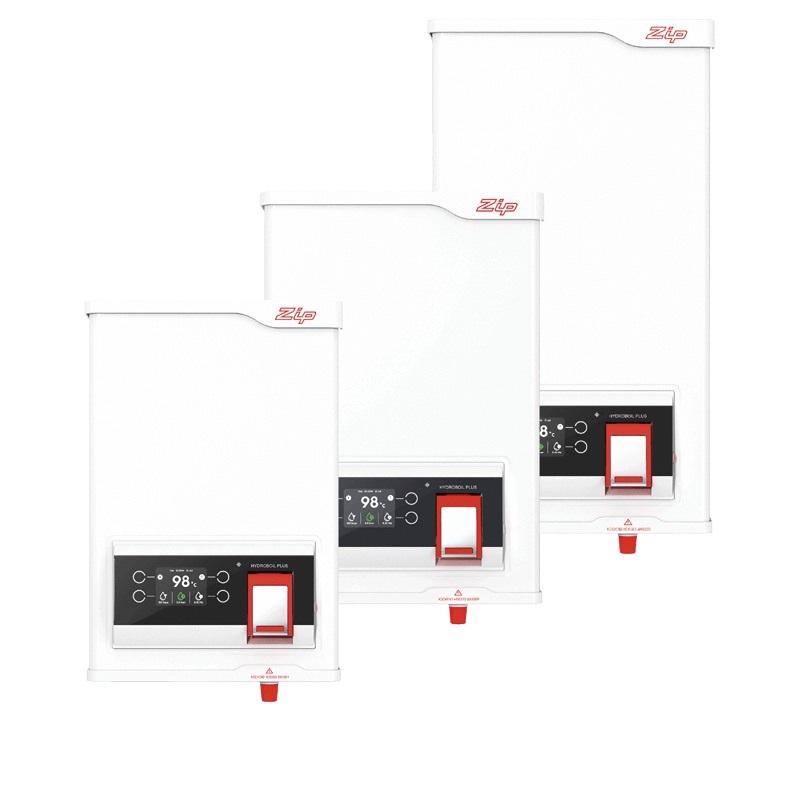

Boiling water heater Zip Hydroboil Plus
  • Hydroboil Plus 3: 1.4 kW, 230 V
  • Hydroboil Plus 5: 2.2 kW, 230 V
  • Hydroboil Plus 7: 2.2 kW, 230 V

Here Zip Hydroboil Plus is used.

  1. Offices

    Offices

  2. Canteens / Bistros

    Canteens / Bistros

  3. Gastronomy / Hotels

    Gastronomy / Hotels

  4. Hospitals

    Hospitals

Never wait for hot water again!

Product innovation
No more waiting for hot water! Just press a button and the pot of tea is ready or the coffee is brewed. A real time-saver for the office or work break! The new Zip Hydroboil® Plus is equipped with an electronic control to increase energy efficiency.

  • Boiling water dispenser for constant supply of boiling water, over-counter installation
  • The button valve enables cup filling at the touch of a finger, the button is raised for convenient jug filling, with anti-scald function
  • LC display for operating and function indicators
  • Patented two-chamber system with hot water tank made of PPS material, prevents the mixing of cold and hot water
  • Activatable energy-saving device (automatic temperature reduction to 68 °C b, in the dark or by timer)
  • Dimensions Hydroboil Plus 3 (height × width × depth): 43.9 × 30.0 × 18.3 cm
  • Dimensions Hydroboil Plus 5 (height × width × depth): 47.3 × 32.9 × 20.1 cm
  • Dimensions Hydroboil Plus 7 (height × width × depth): 58.6 × 32.9 × 20.1 cm

Technical data

>

Data. Values. Facts.
















Boiling water heater Hydroboil Plus 3 Boiling water heater Hydroboil Plus 5 Boiling water heater Hydroboil Plus 7
Offices Canteens / Bistros Gastronomy / Hotels Hospitals Offices Canteens / Bistros Gastronomy / Hotels Hospitals Offices Canteens / Bistros Gastronomy / Hotels Hospitals
Hydroboil Plus 3 Hydroboil Plus 5 Hydroboil Plus 7
Part number
Nominal power rating at 230 V [kW]
Water connections (thread connections)
Water set temperature [°C]
Boiling water capacity [cups/h] 1)
Boiling water content [litres]
Boiling water content [cups]
Reheating time [cups/min]
Heating time for complete fill-up 2) [min]
Supply voltage [1~ / N / PE 220–240 V AC] with plug: Schuko Typ-F (CEE 7/7)
Function indicator
Case [white finish]
Protection class
Weight, filled [kg]
4100-44703 4100-44705 4100-44707
1.4 2.2 2.2
G ½" G ½" G ½"
68 – 100 68 – 100 68 – 100
64 110 110
3 5 7.5
18 30 45
1.1 1.8 1.8
17 17 23
IP 20 IP 20 IP 20
12 15 20

1) Standard cup with 167 ml

2) Inlet temperature 10 °C

Downloads

>

Media type Title Date Size

Product information sheet

Zip-Hydroboil-Plus-PI-en.pdf

23.01.2024

> download
Product information sheet Zip-Hydroboil-Plus-PI-en.pdf 23.01.2024 1,2 MB
> download

CE Conformity

CE-Konformitaetserklaerung-nach-RoHS3-Zip-Hydroboil-2022-11.pdf

25.11.2022

> download
CE Conformity CE-Konformitaetserklaerung-nach-RoHS3-Zip-Hydroboil-2022-11.pdf 25.11.2022 2,6 MB
> download

Datanorm

Datanorm.zip

03.06.2024

> download
Datanorm Datanorm.zip 03.06.2024 40 kB
> download

GAEB

GAEB.zip

03.06.2024

> download
GAEB GAEB.zip 03.06.2024 725 kB
> download

Accessories

>

Filter head FK

Filter head FK (optional)

For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.

Filter head FK: Part no. 845071

KA A

KA A (optional)

Connection set for 1 or 2 additional side dispensing valves for Hydroboil 40

KA A: Part no. 84427

KA Z

KA Z (optional)

Additional dispensing valve for Hydroboil 15, 25 and 40

KA Z: Part no. 84321

KAS 1

KAS 1 (optional)

Collecting funnel for undersink installation, ¾-inch

KAS 1: Part no. 4100-44085

KAS 2

KAS 2 (optional)

Collecting funnel for wall installation, ¾-inch

KAS 2: Part no. 4100-44086

KAT 1

KAT 1 (optional)

Stainless steel draining tray, 32.5 × 17.5 cm

KAT 1: Part no. 4100-44080

KAT 2

KAT 2 (optional)

Stainless steel draining tray with waste water connection, 32.5 × 17.5 cm

KAT 2: Part no. 4100-44081

KKF lime filter cartridge

KKF lime filter cartridge (optional)

Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.

KKF lime filter cartridge: Part no. 845064

AS-KSF

AS-KSF (optional)

For connecting a CLAGE filter cartridge KSF to Zip units. Connection set for installing the KSF dirt filter to the cold water inlet of the water system.

AS-KSF: Part no. 845072

AquaBion lime converter

AquaBion lime converter (optional)

Maintenance-free limescale converter system with zinc anode and brass housing as an alternative for reducing limescale build-up. For installation directly in the ½-inch cold water inlet of the appliance.

AquaBion lime converter: Part no. 845065

KUA flush-mounted connection set

KUA flush-mounted connection set (optional)

Conversion kit for the Hydroboil Plus for connection to a ½ inch wall connection

KUA flush-mounted connection set: Part no. 883115

Similar products:

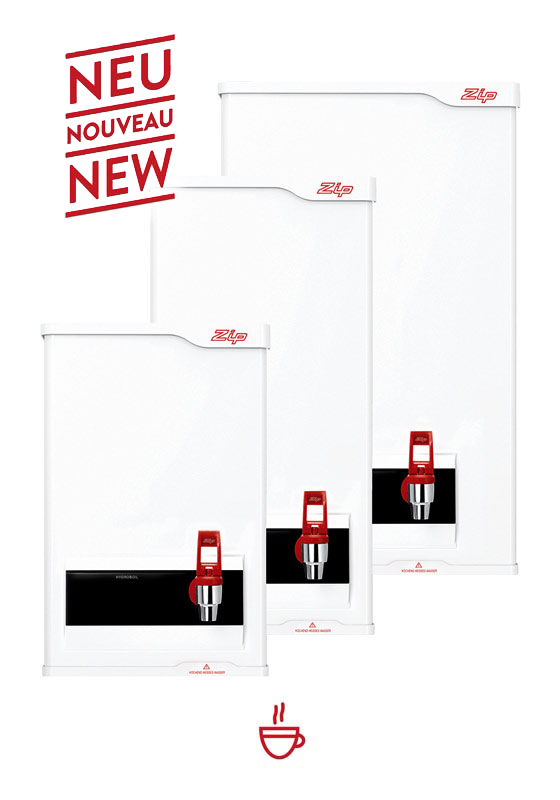

Boiling water heater Zip Hydroboil
