Boiling water heater
Zip Hydroboil Plus (2021)

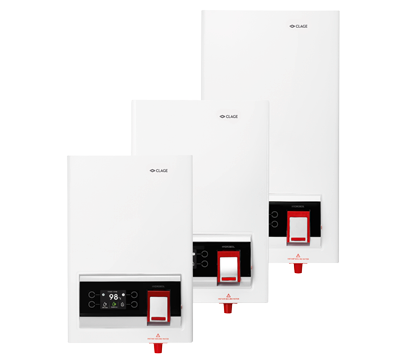

Boiling water heater Zip Hydroboil Plus (2021)
  • Hydroboil Plus 3: 1.4 kW, 230 V
  • Hydroboil Plus 5: 2.2 kW, 230 V
  • Hydroboil Plus 7: 2.2 kW, 230 V

Here Zip Hydroboil Plus is used.

  1. Offices

    Offices

  2. Canteens / Bistros

    Canteens / Bistros

  3. Gastronomy / Hotels

    Gastronomy / Hotels

  4. Hospitals

    Hospitals

Never wait for hot water again!

Never wait for hot water again! One push of a button and you’ll have a pot of steaming hot tea or coffee. A real time saver for the work place! Zip Hydroboil are equipped with electronic controls to increase energy efficiency.

The key valve does not get hot and allows cup fillings at the touch of a finger. The button can be raised for convenient filling of a jug. The use of the safety lock prevents unintentional tapping of hot water.

  • Boiling water automat for the permanent supply of boiling water
  • The button valve enables cup filling at the touch of a finger, the button is raised for convenient can filling, with anti-scald function
  • LCD display with sensor keys for operating and function displays
  • The two-chamber system with hot water tank made of PPS material prevents mixing of cold and hot water
  • Activatable energy saving device (automatic switch-off or temperature reduction to 68 °C in case of prolonged non-use, darkness or by timer switch)
  • Dimensions Hydroboil Plus 3 (height × width × depth): 43,1 × 28,9 × 18 cm
  • Dimensions Hydroboil Plus 5 (height × width × depth): 46,5 × 31,8 × 19,8 cm
  • Dimensions Hydroboil Plus 7 (height × width × depth): 57,8 × 31,8 × 19,8 cm

Technical data

>

Data. Values. Facts.
















Boiling water heater Hydroboil Plus 3 Boiling water heater Hydroboil Plus 5 Boiling water heater Hydroboil Plus 7
Offices Canteens / Bistros Gastronomy / Hotels Hospitals Offices Canteens / Bistros Gastronomy / Hotels Hospitals Offices Canteens / Bistros Gastronomy / Hotels Hospitals
Hydroboil Plus 3 Hydroboil Plus 5 Hydroboil Plus 7
Part number
Nominal power rating at 230 V [kW]
Water connections (thread connections)
Water set temperature [°C]
Boiling water capacity [cups/h] 1)
Boiling water content [litres]
Boiling water content [cups]
Reheating time [cups/min]
Heating time for complete fill-up 2) [min]
Supply voltage [1~ / N / PE 220–240 V AC] with plug: Schuko Typ-F (CEE 7/7)
Function indicator
Case [white finish]
Protection class
Weight, filled [kg]
4100-44603 4100-44605 4100-44607
1.4 2.2 2.2
G ½" G ½" G ½"
68 – 100 68 – 100 68 – 100
64 110 110
3 5 7.5
18 30 45
1.1 1.8 1.8
17 17 24
IP 20 IP 20 IP 20
12.5 16.5 20.5

1) Standard cup with 167 ml

2) Inlet temperature 10 °C

Downloads

>

Media type Title Date Size

Product information sheet

Zip-Hydroboil-Plus-PI-en.pdf

12.09.2019

> download
Product information sheet Zip-Hydroboil-Plus-PI-en.pdf 12.09.2019 755 kB
> download

Operating and installation instructions

Zip-Hydroboil-Plus-GMA-de-en-fr.pdf

25.11.2019

> download
Operating and installation instructions Zip-Hydroboil-Plus-GMA-de-en-fr.pdf 25.11.2019 1,6 MB
> download
  Older versions>
 Operating and installation instructionsZip-Hydroboil-Plus-GMA-de-en-10-2019.pdf> download> download
 Operating and installation instructionsZip-Hydroboil-Plus-GMA-de-en-05-2019.pdf> download> download
  Further versions on request

Service manual

SA-Zip-Hydroboil-Plus-Unterputzanschluss-Set-de-en.pdf

06.11.2020

> download
Service manual SA-Zip-Hydroboil-Plus-Unterputzanschluss-Set-de-en.pdf 06.11.2020 507 kB
> download

Price list

CLAGE-Product-Price-List-PPL-en.pdf

10.05.2023

> download
Price list CLAGE-Product-Price-List-PPL-en.pdf 10.05.2023 6,6 MB
> download

BIM

Zip Hydroboil Plus.rfa

24.11.2022

> download
BIM Zip Hydroboil Plus.rfa 24.11.2022 460 kB
> download

Accessories

>

Filter head FK

Filter head FK (optional)

For installation of CLAGE filters KKF and KSF on all Zip units. The connection accessories must be ordered separately.

Filter head FK: Part no. 845071

KAS 1

KAS 1 (optional)

Collecting funnel for undersink installation, ¾-inch

KAS 1: Part no. 4100-44085

KAS 2

KAS 2 (optional)

Collecting funnel for wall installation, ¾-inch

KAS 2: Part no. 4100-44086

KAT 1

KAT 1 (optional)

Stainless steel draining tray, 32.5 × 17.5 cm

KAT 1: Part no. 4100-44080

KAT 2

KAT 2 (optional)

Stainless steel draining tray with waste water connection, 32.5 × 17.5 cm

KAT 2: Part no. 4100-44081

KKF lime filter cartridge

KKF lime filter cartridge (optional)

Two-stage ion exchange cartridge for softening, pH stabilization and filtration of water for equipment for the production of hot beverages, coffee specialties and tea. Reduces minerals such as calcium and magnesium, as well as chlorine, odors and flavors. Uses pH ion exchange resins, pH stabilization prevents excessive acidity. Stabilization made of coconut membrane with particularly high capacity. Reduces water hardness, which can lead to scale formation in boiling water machines. Hygienic and easy replacement of filter cartridges. Internal filter parts are not exposed to contact or contamination.

KKF lime filter cartridge: Part no. 845064

KUA flush-mounted connection set

KUA flush-mounted connection set (optional)

Conversion kit for the Hydroboil Plus for connection to a ½ inch wall connection

KUA flush-mounted connection set: Part no. 883115
