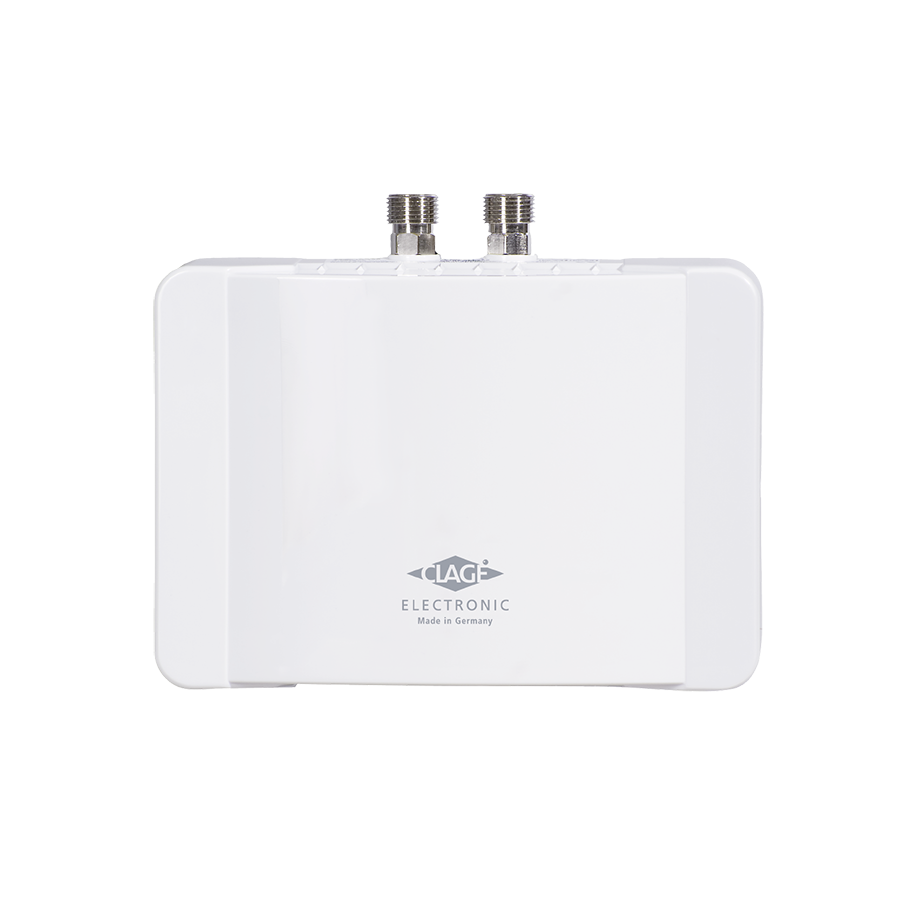

Small instantaneous water heater
MDX (Alt/EoL)

Archive product

• Electronically controlled instantaneous water heater (under-sink unit) in mini format for supplying a wash basin
• Power electronics to control the heating power for demand-oriented temperature limitation
• Outlet temperature and flow rate can be preset in the unit (factory setting approx. 38 °C)
• Effective and maintenance-friendly bare-wire heating system IES^® with replaceable heating cartridge
• Pressure-resistant design
• Special jet controller with flow regulator for use in M22 / M24 aerator thread and connection set (T-piece and flexible pressure hose) for an angle valve included in delivery
• Nominal power ratings:
• MDX 3: 3.5 kW 230 V (approx. 2.0 l /min, 38 °C*) with Schuko plug
• MDX 4: 4.4 kW 230 V (approx. 2.5 l /min, 38 °C*) Fixed connection
• MDX 6: 5.7 kW 230 V (approx. 3.3 l /min, 38 °C*) Permanent connection
• MDX 7: 6.5 kW 400 V (approx. 3.7 l /min, 38 °C*) Permanent connection
• Inlet temperature = 13 °C
• Dimensions (H × W × D): 13 × 18,5 × 8 cm
• Energy efficiency class A (this figure corresponds to the requirements for EU Regulation No. 812/2013, which will become binding from September 2015.
